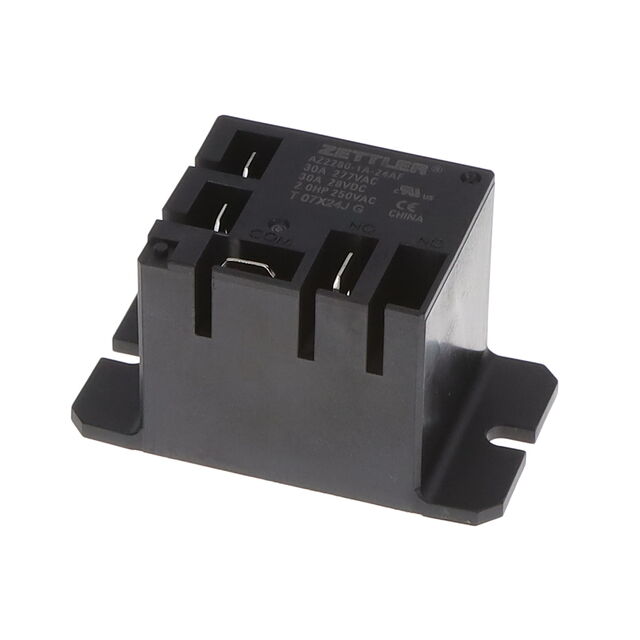

AZ2280-1A-277AF

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 277V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2280-1A-277AF

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 277V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.59
		10	$ 3.20
		40	$ 2.98
		80	$ 2.88
		120	$ 2.82
		280	$ 2.70
		520	$ 2.62
		1000	$ 2.54

Description

General part information

AZ2280-1A Series

General Purpose Relay SPST-NO (1 Form A) 277VAC Coil Chassis Mount

Documents

Technical documentation and resources

Datasheet

Specification	AZ2280-1A-277AF	AZ2280-1A Series

Approval Agency	UL, VDE, cUR	UL, VDE, cUR
Coil Current	18.5 mA	8.2 - 240 mA
Coil Insulation	Class F	Class F
Coil Resistance	15 kOhms	13.45 - 2500 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	277 VAC	5 - 277 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	40 A	40 A
Load - Max Switching	11080 VA, 840 W	840 - 11080 VA
Mounting Type	Chassis Mount	Chassis Mount
Must Operate Voltage	235.4 VAC	3.75 - 235.4 VAC
Must Release Voltage	55.4 VAC	0.5 - 55.4 VDC
Operate Time	15 ms	15 ms
Operating Temperature [Max]	60 °C	60 - 85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 ms
Seal Rating	-	Sealed - Fully
Switching Voltage	277 VAC, 28 VDC	28 - 277 VAC
Termination Style	Quick Connect - 0.187"/0.250"	Quick Connect - 0.187"/0.250"

Part

Coil Voltage

Mounting Type

Switching Voltage

Coil Type

Termination Style

Relay Type

Coil Insulation

Operating Temperature [Max]

Operating Temperature [Min]

Release Time

Contact Form

Approval Agency

Contact Rating (Current)

Must Release Voltage

Load - Max Switching

Operate Time

Contact Material

Coil Current

Coil Resistance

Must Operate Voltage

Seal Rating

American Zettler

AZ2280-1A-22D

22 VDC

Chassis Mount

28 VDC, 277 VAC

Non Latching

Quick Connect - 0.187"/0.250"

General Purpose

Class F

85 °C

-55 °C

10 ms

SPST-NO (1 Form A)

cUR, UL, VDE

40 A

2.2 VDC

840 W, 11080 VA

15 ms

Silver Cadmium Oxide (AgCdO)

American Zettler

AZ2280-1A-24AF

24 VAC

Chassis Mount

28 VDC, 277 VAC

Non Latching

Quick Connect - 0.187"/0.250"

General Purpose

Class F

60 °C

-55 °C

10 ms

SPST-NO (1 Form A)

cUR, UL, VDE

40 A

4.8 VAC

840 W, 11080 VA

15 ms

Silver Cadmium Oxide (AgCdO)

240 mA

100 Ohms

American Zettler

AZ2280-1AET-120AF

120 VAC

Chassis Mount

28 VDC, 277 VAC

Non Latching

Quick Connect - 0.187"/0.250"

General Purpose

Class F

60 °C

-55 °C

10 ms

SPST-NO (1 Form A)

cUR, UL, VDE

40 A

24 VAC

840 W, 11080 VA

15 ms

Silver Tin Oxide (AgSnO)

48 mA

2500 Ohms

102 VAC

American Zettler

AZ2280-1AE-6DE

Chassis Mount

28 VDC, 277 VAC

Non Latching

Quick Connect - 0.187"/0.250"

General Purpose

Class F

85 °C

-55 °C

10 ms

SPST-NO (1 Form A)

cUR, UL, VDE

40 A

0.6 VDC

840 W, 11080 VA

15 ms

Silver Tin Oxide (AgSnO)

150 mA

40 Ohms

4.5 VDC

Sealed - Fully

American Zettler

AZ2280-1A-120AF

120 VAC

Chassis Mount

28 VDC, 277 VAC

Non Latching

Quick Connect - 0.187"/0.250"

General Purpose

Class F

60 °C

-55 °C

10 ms

SPST-NO (1 Form A)

cUR, UL, VDE

40 A

24 VAC

840 W, 11080 VA

15 ms

Silver Cadmium Oxide (AgCdO)

48 mA

2500 Ohms

102 VAC

American Zettler

AZ2280-1A-9DE

9 VDC

Chassis Mount

28 VDC, 277 VAC

Non Latching

Quick Connect - 0.187"/0.250"

General Purpose

Class F

85 °C

-55 °C

10 ms

SPST-NO (1 Form A)

cUR, UL, VDE

40 A

0.9 VDC

840 W, 11080 VA

15 ms

Silver Cadmium Oxide (AgCdO)

93 mA

97 Ohms

6.75 VDC

Sealed - Fully

American Zettler

AZ2280-1A-24AEF

24 VAC

Chassis Mount

28 VDC, 277 VAC

Non Latching

Quick Connect - 0.187"/0.250"

General Purpose

Class F

60 °C

-55 °C

10 ms

SPST-NO (1 Form A)

cUR, UL, VDE

40 A

4.8 VAC

840 W, 11080 VA

15 ms

Silver Cadmium Oxide (AgCdO)

240 mA

100 Ohms

Sealed - Fully

American Zettler

AZ2280-1A-120AKF

120 VAC

Chassis Mount

28 VDC, 277 VAC

Non Latching

Quick Connect - 0.187"/0.250"

General Purpose

Class F

60 °C

-55 °C

10 ms

SPST-NO (1 Form A)

cUR, UL, VDE

40 A

24 VAC

840 W, 11080 VA

15 ms

Silver Cadmium Oxide (AgCdO)

48 mA

2500 Ohms

102 VAC

American Zettler

AZ2280-1A-24A

24 VAC

Chassis Mount

28 VDC, 277 VAC

Non Latching

Quick Connect - 0.187"/0.250"

General Purpose

Class F

60 °C

-55 °C

10 ms

SPST-NO (1 Form A)

cUR, UL, VDE

40 A

4.8 VAC

840 W, 11080 VA

15 ms

Silver Cadmium Oxide (AgCdO)

240 mA

100 Ohms

American Zettler

AZ2280-1A-12D

12 VDC

Chassis Mount

28 VDC, 277 VAC

Non Latching

Quick Connect - 0.187"/0.250"

General Purpose

Class F

85 °C

-55 °C

10 ms

SPST-NO (1 Form A)

cUR, UL, VDE

40 A

1.2 VDC

840 W, 11080 VA

15 ms

Silver Cadmium Oxide (AgCdO)

77 mA

155 Ohms

9 VDC

Part	Coil Voltage	Mounting Type	Switching Voltage	Coil Type	Termination Style	Relay Type	Coil Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Contact Form	Approval Agency	Contact Rating (Current)	Must Release Voltage	Load - Max Switching	Operate Time	Contact Material	Coil Current	Coil Resistance	Must Operate Voltage	Seal Rating
American Zettler AZ2280-1A-22D	22 VDC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	85 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	2.2 VDC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)
American Zettler AZ2280-1A-24AF	24 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	4.8 VAC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	240 mA	100 Ohms
American Zettler AZ2280-1AET-120AF	120 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	24 VAC	840 W, 11080 VA	15 ms	Silver Tin Oxide (AgSnO)	48 mA	2500 Ohms	102 VAC
American Zettler AZ2280-1AE-6DE		Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	85 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	0.6 VDC	840 W, 11080 VA	15 ms	Silver Tin Oxide (AgSnO)	150 mA	40 Ohms	4.5 VDC	Sealed - Fully
American Zettler AZ2280-1A-120AF	120 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	24 VAC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	48 mA	2500 Ohms	102 VAC
American Zettler AZ2280-1A-9DE	9 VDC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	85 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	0.9 VDC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	93 mA	97 Ohms	6.75 VDC	Sealed - Fully
American Zettler AZ2280-1A-24AEF	24 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	4.8 VAC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	240 mA	100 Ohms		Sealed - Fully
American Zettler AZ2280-1A-120AKF	120 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	24 VAC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	48 mA	2500 Ohms	102 VAC
American Zettler AZ2280-1A-24A	24 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	4.8 VAC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	240 mA	100 Ohms
American Zettler AZ2280-1A-12D	12 VDC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	85 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	1.2 VDC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	77 mA	155 Ohms	9 VDC
