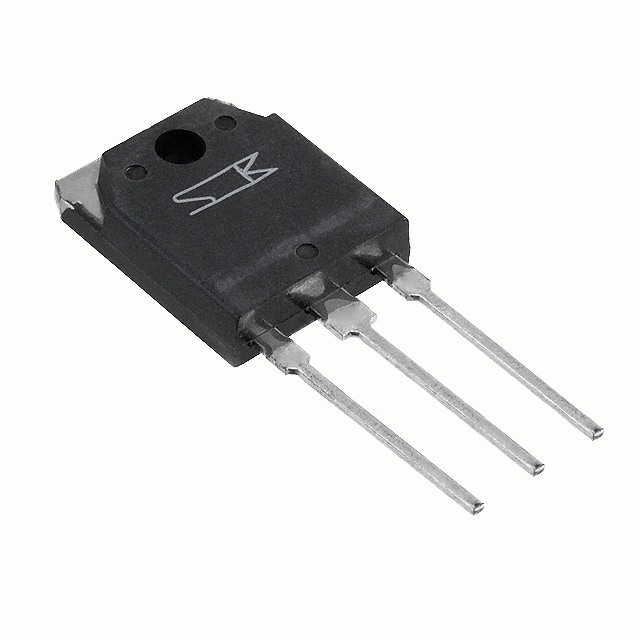

Specification	2SB1560

Current - Collector (Ic) (Max)	10 A
Current - Collector Cutoff (Max)	100 µA
DC Current Gain (hFE) (Min)	5000
Frequency - Transition	50 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-3P-3, SC-65-3
Package Name	TO-3P
Power - Max	100 VA
Transistor Type	PNP, Darlington
Vce Saturation (Max)	2.5 V
Voltage - Collector Emitter Breakdown (Max)	150 V
