EVAL-KX023-1025

Obsolete

Kionix Inc.

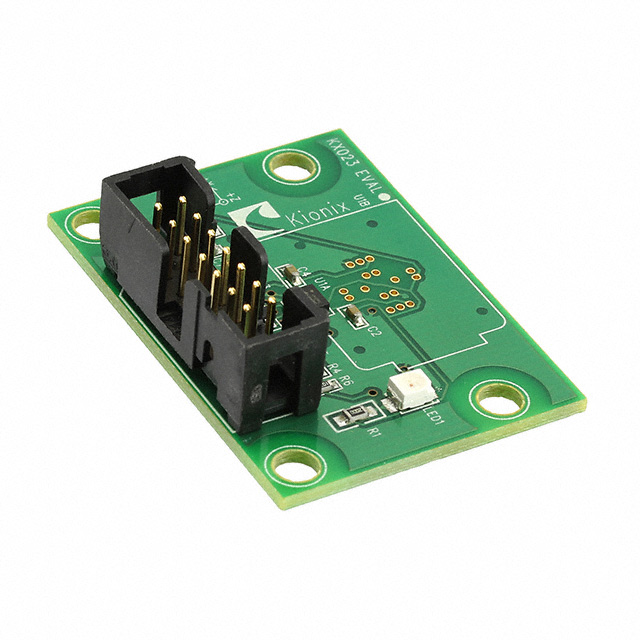

EVAL BOARD FOR KX023-1025

Search across all available documentation for this part.

Obsolete

Kionix Inc.

EVAL BOARD FOR KX023-1025

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EVAL-KX023-1025	KX023 Series

Acceleration Range	-	4 - 8 g
Acceleration Range	-	-2 g
Acceleration Range	-	2 g
Axis	-	Z
Axis	-	Y
Axis	-	X
Bandwidth	-	0.39 Hz
Bandwidth	-	800 Hz
Features	-	Adjustable Bandwidth, Selectable Scale
Interface	Serial, I2C, SPI	Serial, I2C, SPI
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Package / Case	-	16-LGA, 16-VFLGA
Sensing Range	2 g, 4 g, 8 g	2 - 8 g
Sensitivity (LSB/g)	-	4096 - 16384 LSB/g
Sensor Type	Accelerometer, 3 Axis	Accelerometer, 3 Axis
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	16-LGA (3x3)
Type	-	Digital
Utilized IC / Part	KX023-1025	KX023-1025
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.8 V	1.71 - 1.8 V

ACCELEROMETER 2-8G I2C/SPI 16LGA

Part	Bandwidth [Min]	Bandwidth [Max]	Axis [z]	Axis [y]	Axis [x]	Sensitivity (LSB/g)	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Output Type	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplied Contents	Sensor Type	Sensing Range	Utilized IC / Part	Interface
Kionix Inc. KX023-1025-FR	0.39 Hz	800 Hz	Z	Y	X	4096 LSB/g, 16384 LSB/g	16-LGA	16-LGA (3x3)	85 °C	-40 °C	Surface Mount	Digital	4 g, 8 g	-2 g	2 g	I2C, SPI	Adjustable Bandwidth, Selectable Scale	3.6 V	1.8 V
Kionix Inc. KX023-1025-PR	0.39 Hz	800 Hz	Z	Y	X	4096 LSB/g, 16384 LSB/g	16-VFLGA	16-LGA (3x3)	85 °C	-40 °C	Surface Mount	Digital	4 g, 8 g	-2 g	2 g	I2C, SPI	Adjustable Bandwidth, Selectable Scale	3.6 V	1.71 V
Kionix Inc. EVAL-KX023-1025																		3.6 V	1.8 V	Board(s)	Accelerometer, 3 Axis	2 g, 4 g, 8 g	KX023-1025	I2C, Serial, SPI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.03

General part information

KX023-1025 - Accelerometer, 3 Axis Sensor Evaluation Board

Technical documentation and resources

No documents available
