CTRL5480F-5-221K
ActiveCentral Technologies
18000UH RADIAL FIXED INDUCTR
CTRL5480F-5-221K
ActiveCentral Technologies
18000UH RADIAL FIXED INDUCTR
Description
General part information
CTRL5480F-5-221K

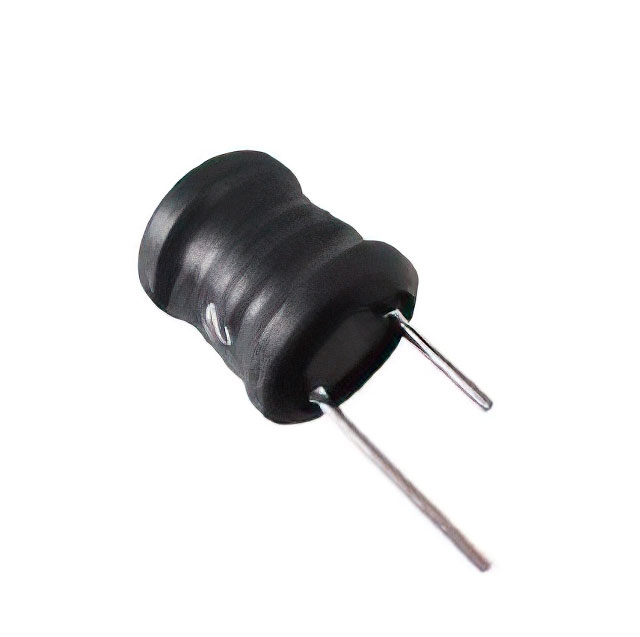

220 µH Unshielded Inductor 2.6 A 147mOhm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | CTRL5480F-5-221K |
|---|---|
| Current - Saturation (Isat) | 1.3 A |
| Current Rating | 2.6 A |
| DC Resistance (DCR) (Max) | 147 mOhm |
| Height - Seated (Max) | 0.701 in |
| Inductance | 220 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Package Name | Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.626 in |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
