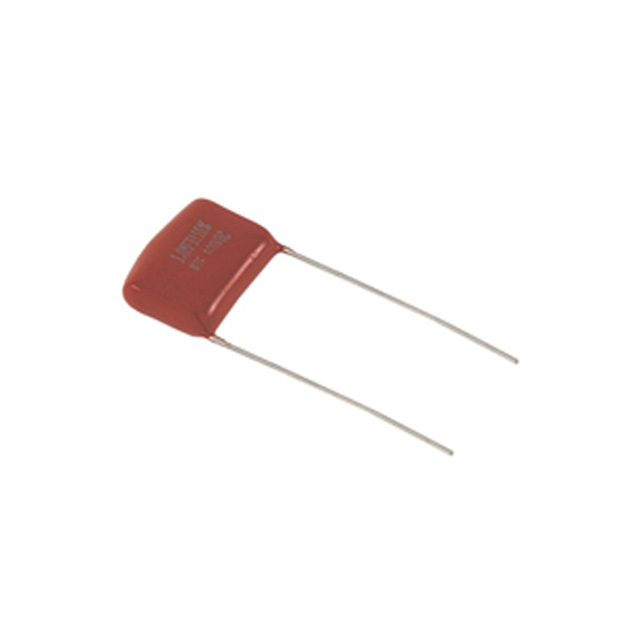

MLR473K630
ActiveNTE Electronics, Inc
CAP FILM 0.047UF 10% 630VDC RAD
MLR473K630
ActiveNTE Electronics, Inc
CAP FILM 0.047UF 10% 630VDC RAD
Description
General part information
MLR473K630
0.047 µF Film Capacitor 250V 630V Polyester Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MLR473K630 |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 nF |
| Dielectric Material | Polyester |
| Height - Seated (Max) | 0.551 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.276 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 630 V |
