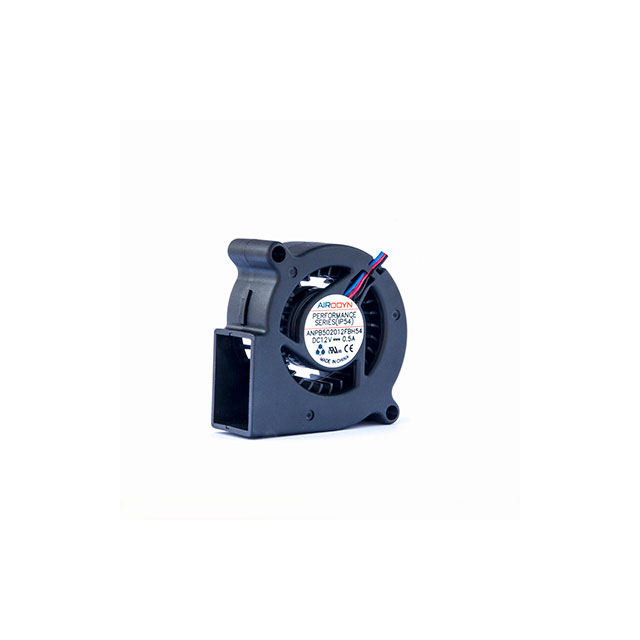

ANPB502012FBH54-01

Active

European Thermodynamics Ltd

FAN BLOWER 50X20MM 12VDC WIRE

Search across all available documentation for this part.

Active

European Thermodynamics Ltd

FAN BLOWER 50X20MM 12VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANPB502012FBH54-01	ANPB502012 Series

Air Flow	6.1 CFM	6.1 CFM
Air Flow	0.171 m³/min	0.171 m³/min
Approval Agency	CE, cURus	CE, cURus
Bearing Type	Ball	Ball
Fan Type	Blower	Blower
Features	Locked Rotor Sensor	Locked Rotor Sensor, Speed Sensor (Tach), PWM Control
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Noise	40 dB(A)	40 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	3.6 W	3.6 W
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	50 mm	50 mm
Size / Dimension [z]	50 mm	50 mm
Static Pressure	0.85 in H2O	0.85 in H2O
Static Pressure	211.7 Pa	211.7 Pa
Termination	3 Wire Leads	3 Wire Leads, 4 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Width [y]	20 mm	20 mm

FAN BLOWER 50X20MM 12VDC WIRE

Part	Power (Watts)	Voltage - Rated	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Bearing Type	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Noise	Fan Type	Lifetime @ Temp.	Static Pressure	Static Pressure	Termination	Approval Agency	Features
European Thermodynamics Ltd ANPB502012FBH54-01	3.6 W	12 VDC	IP54 - Dust Protected, Water Resistant	-20 °C	70 °C	-20 C	70 °C	6.1 CFM	0.171 m³/min	Ball	20 mm	50 mm	Square/Rounded	50 mm	40 dB(A)	Blower	70000 Hrs	0.85 in H2O	211.7 Pa	3 Wire Leads	CE, cURus	Locked Rotor Sensor
European Thermodynamics Ltd ANPB502012PBH54-01	3.6 W	12 VDC	IP54 - Dust Protected, Water Resistant	-20 °C	70 °C	-20 C	70 °C	6.1 CFM	0.171 m³/min	Ball	20 mm	50 mm	Square/Rounded	50 mm	40 dB(A)	Blower	70000 Hrs	0.85 in H2O	211.7 Pa	4 Wire Leads	CE, cURus	PWM Control, Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 12VDC Square/Rounded - 50mm L x 50mm H Ball 6.1 CFM (0.171m³/min) 3 Wire Leads
