1720181
ActivePhoenix Contact

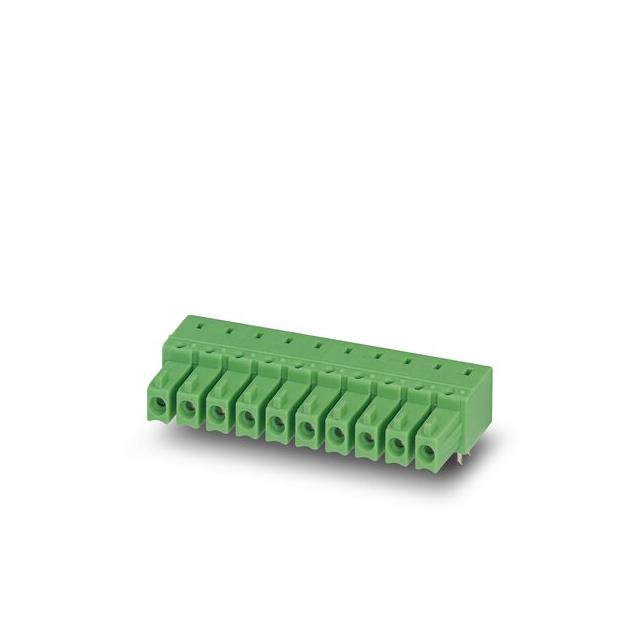

TERM BLOCK HDR 9POS 90DEG 3.81MM
1720181
ActivePhoenix Contact
TERM BLOCK HDR 9POS 90DEG 3.81MM
Description
General part information
1720181
9 Position Terminal Block Header, Female Sockets 0.150" (3.81mm) 90°, Right Angle Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1720181 |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.134 in |
| Current - IEC | 8 A |
| Current - UL | 8 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Insulation Height | 0.27 in |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 9 |
| Pitch | 0.15 in |
| Positions Per Level | 9 |
| Termination Style | Solder |
| Type | Header, Female Sockets |
| Voltage - IEC | 160 V |
| Voltage - UL | 300 V |
