1607532
ActivePhoenix Contact
CONN PLG HSG FMAL 6POS PNL MT RA
1607532
ActivePhoenix Contact
CONN PLG HSG FMAL 6POS PNL MT RA
Description
General part information
1607532

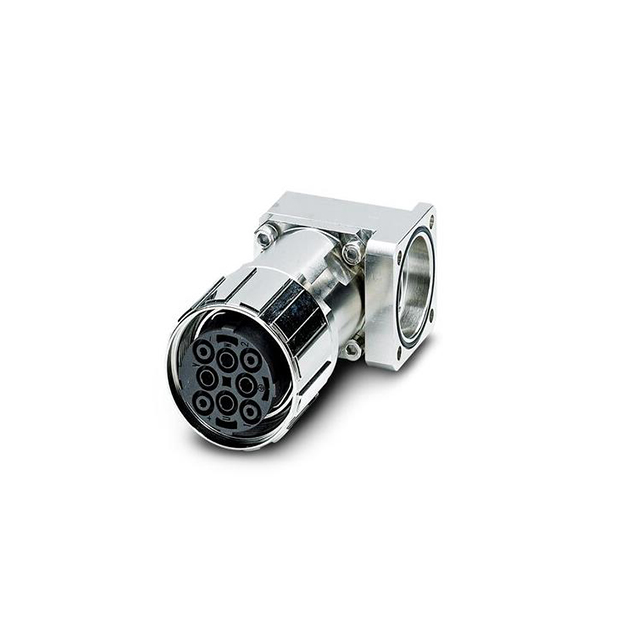

6 (2 + 3 Power + PE) Position Circular Connector Plug Housing Panel Mount, Right Angle Backshell, Coupling Nut
Technical Specifications
Parameters and characteristics for this part
| Specification | 1607532 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 2 mm |
| Contact Size (Power) | 3.6 mm |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Right Angle |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | PE, Power |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M40-6 |
| Shielding | Shielded |
| Type | For Female Sockets |
