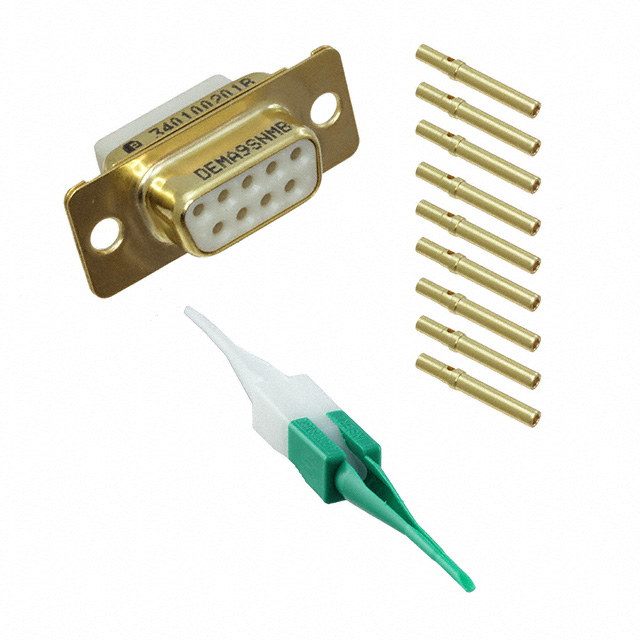

340100201B DEMA9SNMB

Active

C&K Aerospace

CONN D-SUB RCPT 9POS VERT CRIMP

Search across all available documentation for this part.

Active

C&K Aerospace

CONN D-SUB RCPT 9POS VERT CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	340100201B DEMA9SNMB

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Type	Signal
Features	Dust Cap, Extraction/Insertion Tool
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Shell Material, Finish	Copper Alloy
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Crimp

CONN D-SUB RCPT 9POS VERT CRIMP

Part	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Contact Type	Mounting Type	Termination	Connector Type	Connector Style	Shell Material, Finish	Features	Flange Feature
C&K Aerospace 340100201B DEMA9SNMB	2	DE, E	1	9	Signal	Through Hole	Crimp	Receptacle, Female Sockets	D-Sub	Copper Alloy	Dust Cap, Extraction/Insertion Tool	Housing/Shell (Unthreaded)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
