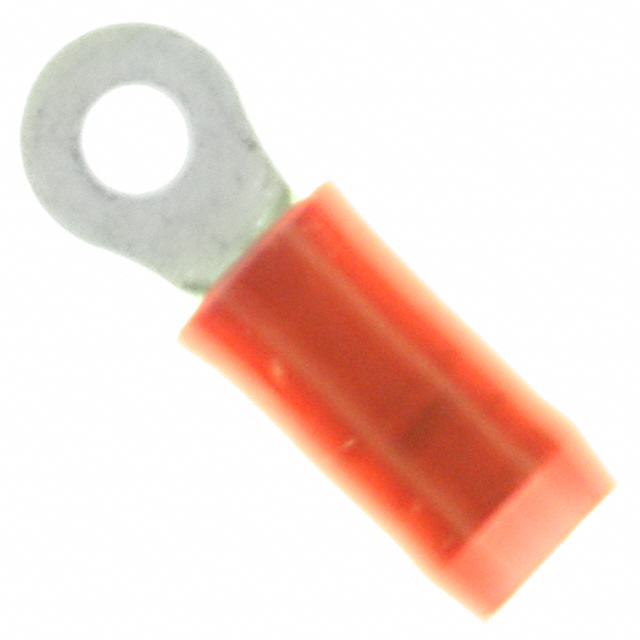

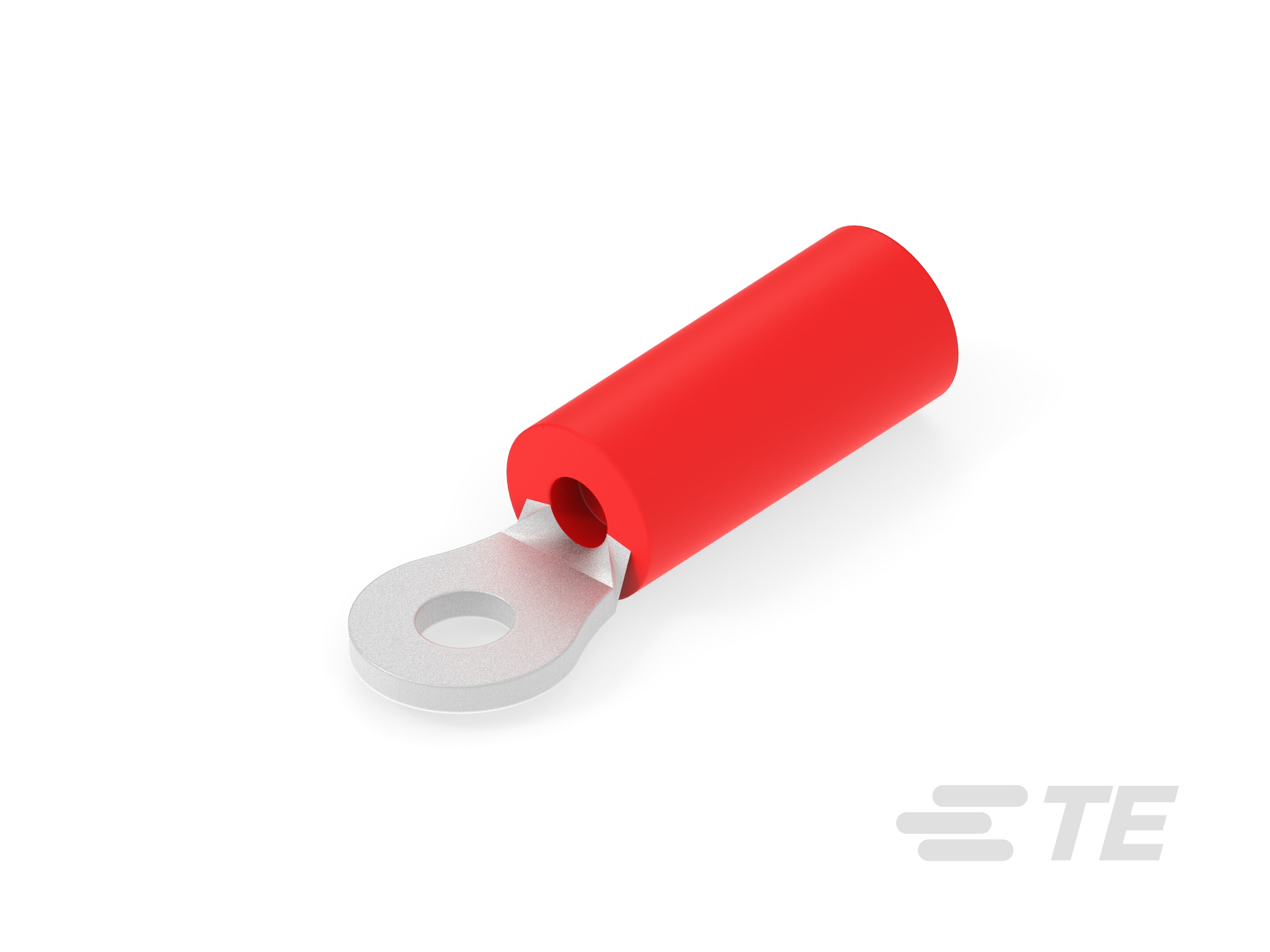

328657

Active

TE Connectivity Raychem Cable Protection

CONN RING CIRC 16-22AWG #2 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

328657

Active

TE Connectivity Raychem Cable Protection

CONN RING CIRC 16-22AWG #2 CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	328657

Color	Red
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter [Max] [diameter]	3.18 mm
Insulation Diameter [Max] [diameter]	0.125 "
Insulation Diameter [Min] [diameter]	2.03 mm
Insulation Diameter [Min] [diameter]	0.08 in
Length - Overall	17.07 mm
Length - Overall [x]	0.672 "
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	2 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Thickness	0.79 mm
Width - Outer Edges [x]	5.54 mm
Width - Outer Edges [x]	0.218 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	16 AWG

SOLISTRAND Budget Series

Terminals TERMINAL BUDG R 12-1

Part	Stud/Tab Size	Features	Contact Finish	Insulation	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Length - Overall [x]	Length - Overall	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Contact Material	Stud/Tab Size	Length - Overall [x]	Tab Thickness	Tab Thickness	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Color	Terminal Style	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Termination [x]	Length - Termination [x]	Thickness [custom]	Thickness [custom]	Material - Insulation	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]
TE Connectivity Raychem Cable Protection 322799	10 Stud	Brazed Seam Serrated Termination	Nickel	Non-Insulated	Circular	22 AWG	16 AWG	Free Hanging (In-Line)	0.574 in	14.58 mm	0.031 in	0.79 mm	7.14 mm	0.281 in	Crimp	Copper
TE Connectivity Raychem Cable Protection 322763		Brazed Seam	Tin	Non-Insulated	D-Shaped	350 kcmil	300 kcmil	Free Hanging (In-Line)	3.422 in		0.136 in	3.45 mm	39.24 mm	1.545 in	Crimp	Copper	3/8 Stud	86.92 mm
TE Connectivity Raychem Cable Protection 34512	6 Stud	Serrated Termination	Tin	Insulated	Standard	12 AWG	10 AWG	Free Hanging (In-Line)	0.954 in				7.37 mm	0.29 in	Crimp	Copper		24.23 mm	1.02 mm	0.04 in	0.145 in	3.68 mm	Yellow	Single Stud Hole
TE Connectivity Raychem Cable Protection 51875-1	6 Stud	Serrated Termination	Tin	Non-Insulated	Flanged	26 AWG	22 AWG	Free Hanging (In-Line)	0.471 in				6.35 mm	0.25 "	Crimp	Copper		11.96 mm							0.203 in	5.16 mm	0.135 "	3.43 mm	3.68 mm	0.145 in
TE Connectivity Raychem Cable Protection 33718	10 Stud	Heavy Duty Serrated Termination	Tin	Non-Insulated	Circular			Free Hanging (In-Line)	0.723 "		0.048 in	1.22 mm			Crimp	Copper		18.36 mm													0.343 in	8.71 mm
TE Connectivity Raychem Cable Protection 322776	6 Stud	Serrated Termination	Tin	Non-Insulated	Flanged	22 AWG	16 AWG	Free Hanging (In-Line)	0.514 in				6.35 mm	0.25 "	Crimp	Copper		13.06 mm							0.203 in	5.16 mm			3.68 mm	0.145 in			0.181 in	4.6 mm
TE Connectivity Raychem Cable Protection 322768	10 Stud		Tin	Non-Insulated	Circular	22 AWG	16 AWG	Free Hanging (In-Line) Right Angle			0.031 in	0.79 mm			Crimp	Copper
TE Connectivity Raychem Cable Protection 32860	10 Stud	Serrated Termination	Tin	Non-Insulated	Circular	26 AWG	22 AWG	Free Hanging (In-Line)	0.544 in				6.35 mm	0.25 "	Crimp	Copper		13.82 mm																	0.46 mm	0.018 in
TE Connectivity Raychem Cable Protection 31425	2 Stud	Serrated Termination	Tin	Non-Insulated	Circular	26 AWG	22 AWG	Free Hanging (In-Line)	0.329 in	8.36 mm			3.56 mm	0.14 in	Crimp	Copper																			0.46 mm	0.018 in
TE Connectivity Raychem Cable Protection 328657	2 Stud	Serrated Termination	Tin	Insulated	Circular	22 AWG	16 AWG	Free Hanging (In-Line)	0.672 "	17.07 mm	0.031 in	0.79 mm			Crimp	Copper							Red								0.218 in	5.54 mm					Nylon Polyamide (PA)	2.03 mm	3.18 mm	0.125 "	0.08 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.58
		10	$ 0.54
		25	$ 0.54
		50	$ 0.52
		100	$ 0.45
		250	$ 0.41
		500	$ 0.38
		1000	$ 0.34
		3000	$ 0.33

Description

General part information

SOLISTRAND Budget Series

Terminals TERMINAL BUDG R 12-1
