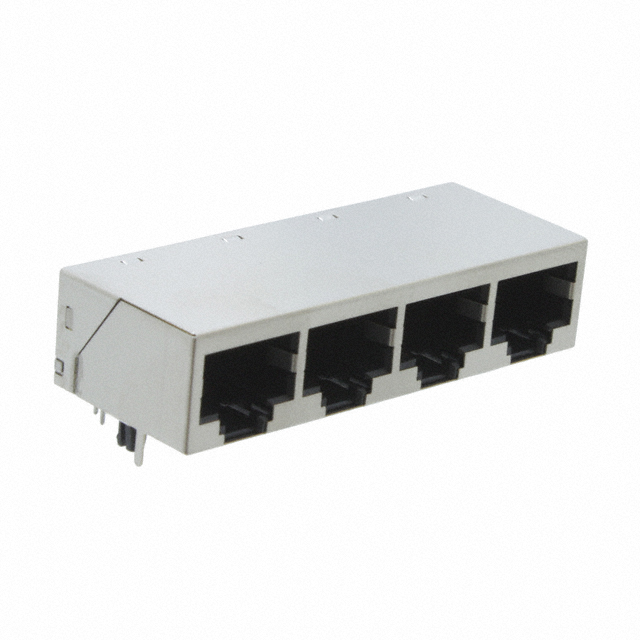

CONN JACK 4PORT 100 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
A63-142-300N161
ObsoleteEDAC Inc.
CONN JACK 4PORT 100 BASE-T PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A63-142-300N161 | A63-142 Series |
|---|---|---|
| Applications | 10/100 Base-T, AutoMDIX | 10/100 Base-T, AutoMDIX |
| Connector Type | RJ45 | RJ45 |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | Flash | Flash |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Height Above Board | 0.516 in | 0.516 in |
| Height Above Board | 13.11 mm | 13.11 mm |
| Height Above Board | - | 13.8 mm |
| Height Above Board | - | 0.543 in |
| Housing Material | Glass Filled, Polyamide (PA46), Nylon 4/6 | Polybutylene Terephthalate (PBT), Glass Filled, Glass Filled, Polyamide (PA46), Nylon 4/6 |
| LED Color | Does Not Contain LED | Yellow - Green, Does Not Contain LED |
| Mounting Type | Through Hole | Through Hole |
| Number of Ports | 4 | 4 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Orientation | 90 ° | 90 ° |
| Shield Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
| Tab Direction | Down | Down |
| Termination | Solder | Solder |
A63-142 Series
CONN JACK 4PORT 100 BASE-T PCB
| Part | Height Above Board [z] | Height Above Board [z] | Termination | Number of Ports | Shield Material | Number of Rows | Contact Finish Thickness | LED Color | Tab Direction | Connector Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Mounting Type | Housing Material | Applications | Shielding | Contact Finish | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. A63-142-313P161 | 13.8 mm | 0.543 in | Solder | 4 | Copper Alloy | 1 | Flash | Yellow - Green | Down | RJ45 | Phosphor Bronze | 70 °C | 0 °C | 90 ° | Through Hole | Polybutylene Terephthalate (PBT), Glass Filled | 10/100 Base-T, AutoMDIX | Shielded | Gold | ||
EDAC Inc. A63-142-300N161 | Solder | 4 | Copper Alloy | 1 | Flash | Does Not Contain LED | Down | RJ45 | Phosphor Bronze | 70 °C | 0 °C | 90 ° | Through Hole | Glass Filled, Nylon 4/6, Polyamide (PA46) | 10/100 Base-T, AutoMDIX | Shielded | Gold | 0.516 in | 13.11 mm |
