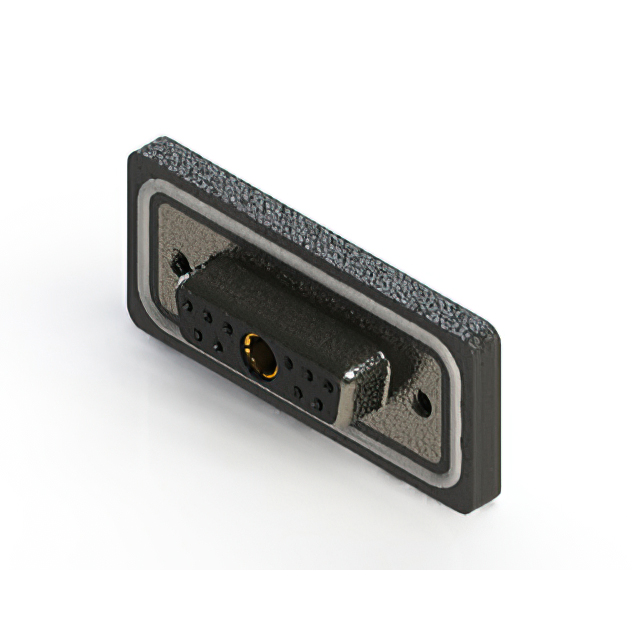

628W11W1624-1N2
ActiveEDAC Inc.
CONN D-SUB RCPT 11P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
628W11W1624-1N2
ActiveEDAC Inc.
CONN D-SUB RCPT 11P PNL MNT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 628W11W1624-1N2 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5A, 10A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 11 |
| Number of Positions [custom] | 10 |
| Number of Positions [custom] | 1 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 11C1, 11W1 |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
628W11W Series
| Part | Shell Size, Connector Layout | Shell Size, Connector Layout | Current Rating (Amps) | Termination | Flange Feature | Ingress Protection | Dielectric Material | Shell Material, Finish | Connector Type | Number of Rows | Contact Finish | Features | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Voltage Rating | Material Flammability Rating | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Color | Mounting Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 11C1 11W1 | 2 | 5 A 20 A | Solder | Board Side (M3) | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Receptacle Female Sockets | 2 | Gold | Board Lock Shielded | 10 | 1 | 11 | 125 VDC | UL94 V-0 | Signal and Power | -25 °C | 85 °C | Combo D-Sub | Black | Panel Mount Through Hole | Copper Alloy | 0.76 Ám | 30 Áin | ||
EDAC Inc. | 11C1 11W1 | 2 | 5 A 30 A | Housing/Shell (4-40) | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Receptacle Female Sockets | 2 | Gold | Shielded | 10 | 1 | 11 | 125 VDC | UL94 V-0 | Signal and Power | -25 °C | 85 °C | Combo D-Sub | Black | Panel Mount Through Hole | Copper Alloy | 0.76 Ám | 30 Áin | |||
EDAC Inc. | 11C1 11W1 | 2 | Solder | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Receptacle Female Sockets | 2 | Gold | Shielded | 10 | 1 | 11 | 125 VDC | UL94 V-0 | Signal and Power | -25 °C | 85 °C | Combo D-Sub | Black | Panel Mount Through Hole | Copper Alloy | 0.76 Ám | 30 Áin | 10A 5A | ||
EDAC Inc. | 11C1 11W1 | 2 | Solder | Housing/Shell (4-40) | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Receptacle Female Sockets | 2 | Gold | Shielded | 10 | 1 | 11 | 125 VDC | UL94 V-0 | Signal and Power | -25 °C | 85 °C | Combo D-Sub | Black | Panel Mount Through Hole | Copper Alloy | 0.76 Ám | 30 Áin | 10A 5A | ||
EDAC Inc. | 11C1 11W1 | 2 | 5 A 30 A | Solder | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Receptacle Female Sockets | 2 | Gold | Shielded | 10 | 1 | 11 | 125 VDC | UL94 V-0 | Signal and Power | -25 °C | 85 °C | Combo D-Sub | Black | Panel Mount Through Hole | Copper Alloy | 0.76 Ám | 30 Áin | ||
EDAC Inc. | 11C1 11W1 | 2 | 5 A 40 A | Housing/Shell (4-40) | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Receptacle Female Sockets | 2 | Gold | Shielded | 10 | 1 | 11 | 125 VDC | UL94 V-0 | Signal and Power | -25 °C | 85 °C | Combo D-Sub | Black | Panel Mount Through Hole | Copper Alloy | 0.76 Ám | 30 Áin | |||
EDAC Inc. | 11C1 11W1 | 2 | Housing/Shell (4-40) | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Receptacle Female Sockets | 2 | Gold | Shielded | 10 | 1 | 11 | 125 VDC | UL94 V-0 | Signal and Power | -25 °C | 85 °C | Combo D-Sub | Black | Panel Mount Through Hole | Copper Alloy | 0.76 Ám | 30 Áin | 10A 5A | |||
EDAC Inc. | 11C1 11W1 | 2 | Solder | Board Side (M3) | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Receptacle Female Sockets | 2 | Gold | Board Lock Shielded | 10 | 1 | 11 | 125 VDC | UL94 V-0 | Signal and Power | -25 °C | 85 °C | Combo D-Sub | Black | Panel Mount Through Hole | Copper Alloy | 0.76 Ám | 30 Áin | 10A 5A | ||
EDAC Inc. | 11C1 11W1 | 2 | 5 A 40 A | Solder | Board Side (M3) | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Receptacle Female Sockets | 2 | Gold | Board Lock Shielded | 10 | 1 | 11 | 125 VDC | UL94 V-0 | Signal and Power | -25 °C | 85 °C | Combo D-Sub | Black | Panel Mount Through Hole | Copper Alloy | 0.76 Ám | 30 Áin | ||
EDAC Inc. | 11C1 11W1 | 2 | Housing/Shell (4-40) | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | Receptacle Female Sockets | 2 | Gold | Shielded | 10 | 1 | 11 | 125 VDC | UL94 V-0 | Signal and Power | -25 °C | 85 °C | Combo D-Sub | Black | Panel Mount Through Hole | Copper Alloy | 10A 5A | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 16.34 | |
Description
General part information
628W11W Series
11 (10 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
