BWR-15/100-D48-C
ActiveMurata Power Solutions Inc.

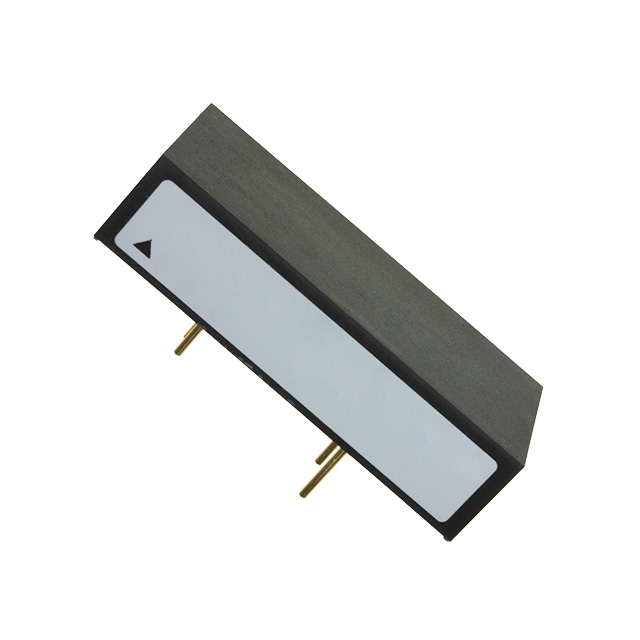

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 3 W, 2 OUTPUT, 15 V, 100 MA
Deep-Dive with AI
Search across all available documentation for this part.
BWR-15/100-D48-C
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 3 W, 2 OUTPUT, 15 V, 100 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BWR-15/100-D48-C | BWR-15 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | 100 mA | 100 - 670 mA |
| Current - Output (Max) | 100 mA | 100 - 670 mA |
| Current - Output (Max) | - | 500 mA |
| Efficiency | 80 % | 80 - 84 % |
| Features | OCP, OVP | OVP, OCP, OTP, Remote On/Off, OCP, OVP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-DIP Module | 6-DIP Module, 5-DIP Module, 8-DIP Module, 7 Leads |
| Power (Watts) | 3 W | 3 - 20 W |
| Size / Dimension [x] | 50.8 mm | 50.8 mm |
| Size / Dimension [x] | 2 in | 2 in |
| Size / Dimension [y] | 25.4 mm | 25.4 - 50.8 mm |
| Size / Dimension [y] | 25.4 mm | 2 - 25.4 mm |
| Size / Dimension [z] | 0.47 " | 0.38 - 0.47 " |
| Size / Dimension [z] | 11.8 mm | 9.7 - 11.8 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V | 7.5 - 72 V |
| Voltage - Input (Min) [Min] | 18 V | 4.7 - 18 V |
| Voltage - Isolation | 1.5 kV | 1.5 - 1000 kV |
| Voltage - Output 1 | 15 V | 15 V |
| Voltage - Output 2 | -15 V | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BWR-15 Series
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, 2:1, 17 W, 2 OUTPUT, 15 V, 575 MA
| Part | Voltage - Isolation | Features | Current - Output (Max) | Current - Output (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Applications | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Number of Outputs | Voltage - Output 2 | Efficiency | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Package / Case | Mounting Type | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. BWR-15/575-D24A-C | 1.5 kV | OCP, OTP, OVP, Remote On/Off | 575 mA | 575 mA | 100 °C | -40 °C | 15 V | ITE (Commercial) | Isolated Module | 25.4 mm | 50.8 mm | 0.47 " | 11.8 mm | 25.4 mm | 2 in | 17 W | 2 | -15 V | 84 % | 36 V | 18 V | 6-DIP Module | Through Hole | |
Murata Power Solutions Inc. BWR-15/330-D12A-C | 1000 V | 330 mA | 330 mA | 100 °C | -40 °C | 15 V | ITE (Commercial) | Isolated Module | 25.4 mm | 50.8 mm | 0.38 in | 9.7 mm | 25.4 mm | 2 in | 10 W | 2 | -15 V | 84 % | 18 V | 9 V | 5-DIP Module | Through Hole | ||
Murata Power Solutions Inc. BWR-15/575-D24A-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. BWR-15/100-D48-C | 1.5 kV | OCP, OVP | 100 mA | 100 mA | 100 °C | -40 °C | 15 V | ITE (Commercial) | Isolated Module | 25.4 mm | 50.8 mm | 0.47 " | 11.8 mm | 25.4 mm | 2 in | 3 W | 2 | -15 V | 80 % | 72 V | 18 V | 6-DIP Module | Through Hole | |
Murata Power Solutions Inc. BWR-15/670-D12A-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. BWR-15/100-D48-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. BWR-15/575-D12A-C | 1.5 kV | OCP, OTP, OVP, Remote On/Off | 575 mA | 575 mA | 100 °C | -40 °C | 15 V | ITE (Commercial) | Isolated Module | 25.4 mm | 50.8 mm | 0.47 " | 11.8 mm | 25.4 mm | 2 in | 17 W | 2 | -15 V | 84 % | 18 V | 10 VDC | 6-DIP Module | Through Hole | |
Murata Power Solutions Inc. BWR-15/670-D12A-C | 1000 V | 670 mA | 670 mA | 100 °C | -40 °C | 15 V | ITE (Commercial) | Isolated Module | 50.8 mm | 50.8 mm | 0.45 " | 11.4 mm | 2 in | 2 in | 20 W | 2 | -15 V | 83 % | 36 V | 9 V | 8-DIP Module, 7 Leads | Through Hole | ||
Murata Power Solutions Inc. BWR-15/500-D5A-C | 1000 V | 500 mA | 100 °C | -40 °C | 15 V | ITE (Commercial) | Isolated Module | 50.8 mm | 50.8 mm | 0.45 " | 11.4 mm | 2 in | 2 in | 15 W | 2 | -15 V | 7.5 V | 4.7 V | 8-DIP Module, 7 Leads | Through Hole | 500 mA |
Description
General part information
BWR-15 Series
Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 72V Input
