1241.7021.1120000
ActiveSCHURTER Inc.

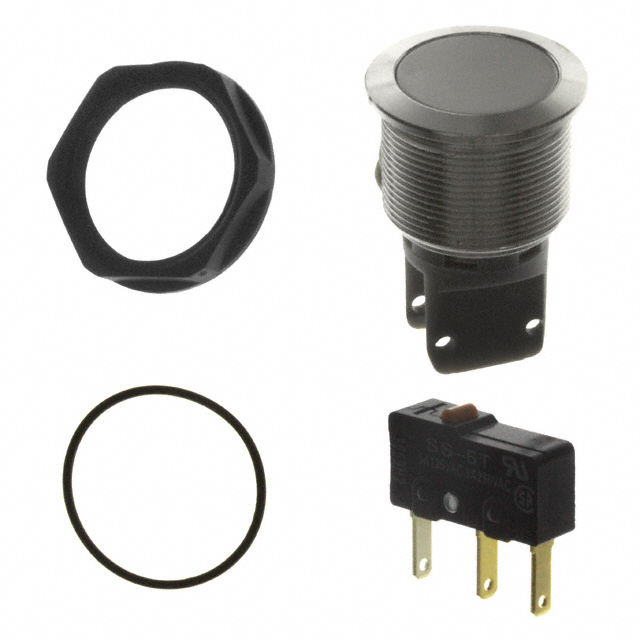

SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
1241.7021.1120000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.7021.1120000 | 1241.7021 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Clear | Clear |
| Current Rating (Amps) | 5 A | 5 A |
| Electrical Life | 200000 Cycles | 50000 - 200000 Cycles |
| Features | Ceramic Actuator | Ceramic Actuator |
| Ingress Protection | IP40 | IP67 - Dust Tight, Waterproof, IP40 |
| Mechanical Life | 1500000 Cycles | 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 19.1 mm | 19.1 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal | Anti-Vandal |
| Voltage Rating - AC | 125 V | 125 - 250 V |
1241.7021 Series
SWITCH PUSHBUTTON SPDT 5A 250V
| Part | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Type | Voltage Rating - AC | Circuit | Features | Actuator Marking | Electrical Life | Termination Style | Switch Function | Current Rating (Amps) | Mechanical Life | Type | Panel Cutout Dimensions [diameter] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.7021.1180000 | Clear | -25 °C | 85 °C | Panel Mount, Front | Button, Flush, Round | 250 V | SPDT | Ceramic Actuator | No Marking | 50000 Cycles | Quick Connect - 0.110" (2.8mm) | On-Mom | 5 A | 1500000 Cycles | Anti-Vandal | 19.1 mm | IP67 - Dust Tight, Waterproof |
SCHURTER Inc. 1241.7021.1120000 | Clear | -25 °C | 85 °C | Panel Mount, Front | Button, Flush, Round | 125 V | SPDT | Ceramic Actuator | No Marking | 200000 Cycles | Quick Connect - 0.110" (2.8mm) | On-Mom | 5 A | 1500000 Cycles | Anti-Vandal | 19.1 mm | IP40 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.91 | |
Description
General part information
1241.7021 Series
Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
