GX-312MLK-A-N
ActivePanasonic Industrial Automation Sales
SENSOR M12 THRD NPN NO LR
GX-312MLK-A-N
ActivePanasonic Industrial Automation Sales
SENSOR M12 THRD NPN NO LR
Description
General part information
GX-312MLK-A-N

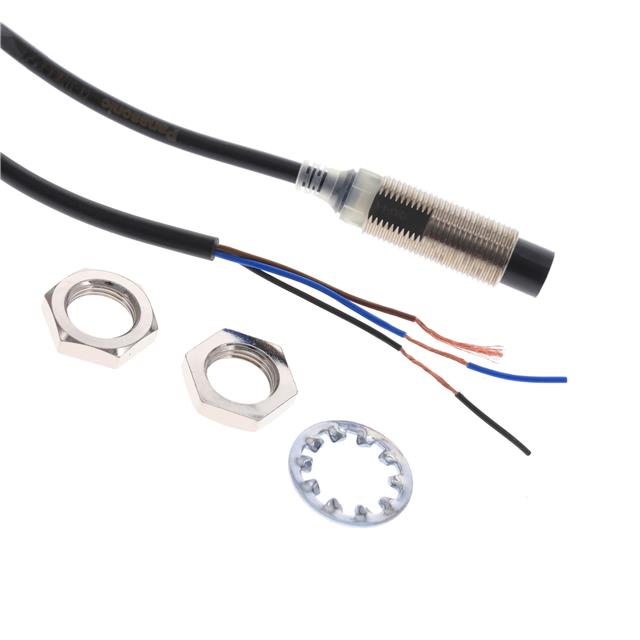

Inductive Proximity Sensor 0.252" (6.4mm) IP67, IP67G, IP69K Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | GX-312MLK-A-N |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67G, IP69K, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Threaded - M12, Cylinder |
| Response Frequency | 1.5 kHz |
| Sensing Distance | 0.252 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
