XARP-15V

Active

JST Sales America Inc.

CONN RCPT HSG 15POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

XARP-15V

Active

JST Sales America Inc.

CONN RCPT HSG 15POS 2.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.33
		10	$ 0.25
		25	$ 0.23
		50	$ 0.21
		100	$ 0.19
		250	$ 0.17
		500	$ 0.16
		1000	$ 0.15
		2500	$ 0.14

Description

General part information

XARP Series

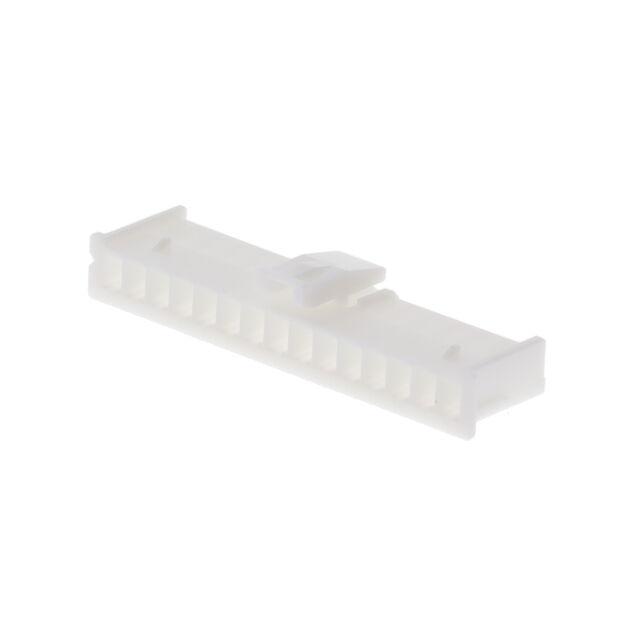

15 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XARP-15V	XARP Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	15	2 - 15
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm

XARP Series

CONN RCPT HSG 12POS 2.50MM

Part	Number of Rows	Mounting Type	Number of Positions	Fastening Type	Contact Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Insulation Material	Contact Termination	Note	Connector Type
JST Sales America Inc. XARP-12V	1	Free Hanging (In-Line)	12	Latch Lock	Female Socket	Natural	-25 °C	85 °C	0.098 in	2.5 mm	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	Receptacle
JST Sales America Inc. XARP-11V	1	Free Hanging (In-Line)	11	Latch Lock	Female Socket	Natural	-25 °C	85 °C	0.098 in	2.5 mm	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	Receptacle
JST Sales America Inc. XARP-09V	1	Free Hanging (In-Line)	9	Latch Lock	Female Socket	Natural	-25 °C	85 °C	0.098 in	2.5 mm	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	Receptacle
JST Sales America Inc. XARP-13V	1	Free Hanging (In-Line)	13	Latch Lock	Female Socket	Natural	-25 °C	85 °C	0.098 in	2.5 mm	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	Receptacle
JST Sales America Inc. XARP-14V	1	Free Hanging (In-Line)	14	Latch Lock	Female Socket	Natural	-25 °C	85 °C	0.098 in	2.5 mm	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	Receptacle
JST Sales America Inc. XARP-02V	1	Free Hanging (In-Line)	2	Latch Lock	Female Socket	Natural	-25 °C	85 °C	0.098 in	2.5 mm	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	Receptacle
JST Sales America Inc. XARP-05V	1	Free Hanging (In-Line)		Latch Lock	Female Socket	Natural	-25 °C	85 °C	0.098 in	2.5 mm	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	Receptacle
JST Sales America Inc. XARP-10V	1	Free Hanging (In-Line)	10	Latch Lock	Female Socket	Natural	-25 °C	85 °C	0.098 in	2.5 mm	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	Receptacle
JST Sales America Inc. XARP-08V	1	Free Hanging (In-Line)	8	Latch Lock	Female Socket	Natural	-25 °C	85 °C	0.098 in	2.5 mm	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	Receptacle
JST Sales America Inc. XARP-03V	1	Free Hanging (In-Line)		Latch Lock	Female Socket	Natural	-25 °C	85 °C	0.098 in	2.5 mm	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	Receptacle
