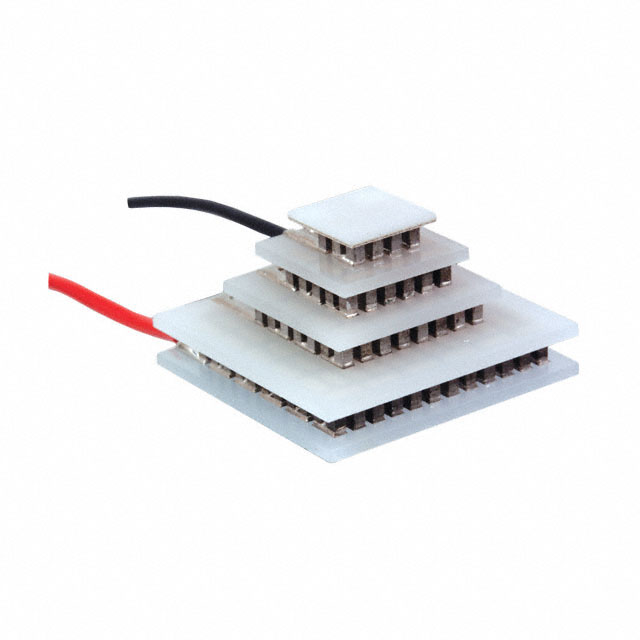

Specification	9340005-307

Current - Max	1.8 A
Delta Tmax	115 °C
Features	Non-Sealed, Lead Wires
Height	0.5 in
Maximum Power Dissipation (Qmax)	1.9 W
Number of Stages	4
Operating Temperature	80 °C
Size / Dimension Length	23 mm
Size / Dimension Shape	Square
Size / Dimension Width	23 mm
Voltage - Max	8.3 V

9340005 Series

Part	Maximum Power Dissipation (Qmax)	Delta Tmax	Height	Features	Number of Stages	Current - Max	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length	Voltage - Max	Operating Temperature
Laird Thermal Systems, Inc. 16505-304	16.4 W	87 °C	6.6 mm	Lead Wires Non-Sealed	2	2.8 A	30 mm	Square	30 mm	15.6 V	80 °C
Laird Thermal Systems, Inc. 9350006-319	39.9 W	87 °C	8.1 mm	Lead Wires Non-Sealed	2	6.8 A	40 mm	Square	40 mm	15.8 V	80 °C
Laird Thermal Systems, Inc. 9340006-301	2 W	123 °C	15.39 mm	Lead Wires Non-Sealed	5	1.6 A	30 mm	Square	30 mm	14.5 V	80 °C
Laird Thermal Systems, Inc. 9340005-301	1.9 W	115 °C	12.5 mm	Lead Wires Non-Sealed	4	1.8 A	23 mm	Square	23 mm	8.3 V	80 °C
Laird Thermal Systems, Inc. 9360002-307	15.3 W	100 °C	13.11 mm	Lead Wires Non-Sealed	3	8 A	44 mm	Square	44 mm	8.3 V	80 °C
Laird Thermal Systems, Inc. 9340003-302	16.4 W	87 °C	6.5 mm	Lead Wires Sealed Silicone RTV	2	2.9 A	30 mm	Square	30 mm	15.6 V	80 °C
