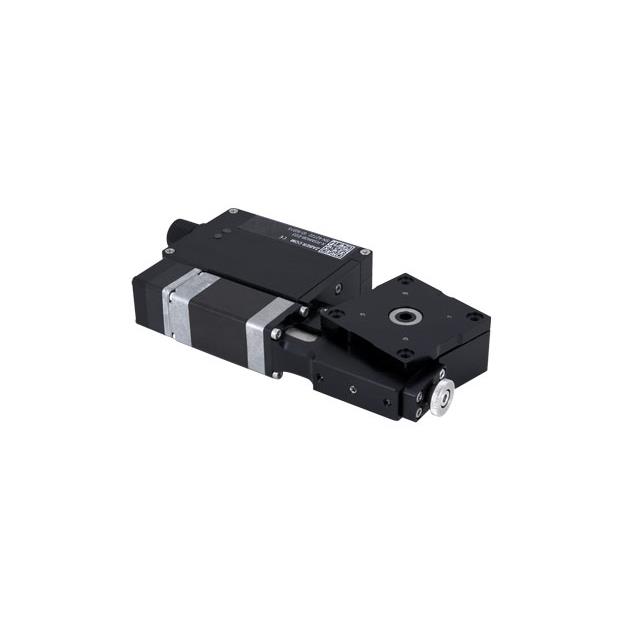

X-RSM40B-E03-KX13A
ActiveZaber Technologies
MOTORIZED WORM GEAR-DRIVEN ROTAT
X-RSM40B-E03-KX13A
ActiveZaber Technologies
MOTORIZED WORM GEAR-DRIVEN ROTAT
Description
General part information
X-RSM40B-E03-KX13A
MOTORIZED WORM GEAR-DRIVEN ROTAT
Technical Specifications
Parameters and characteristics for this part
| Specification | X-RSM40B-E03-KX13A |
|---|---|
| Accuracy | 0.14 ° |
| Approval Agency | CE |
| Duty Cycle | 100 % |
| Features | Integrated Controller |
| Feedback Type | Incremental Encoder |
| Load Force (Dynamic) | 11.24 lbf |
| Motor Type | Bipolar, Stepper |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Stroke Length (Angle) | 360 ° |
| Termination Style | Connector |
| Type | Rotary Stage |
| Voltage - Rated (Max) | 48 V |
| Voltage - Rated (Min) | 24 V |
