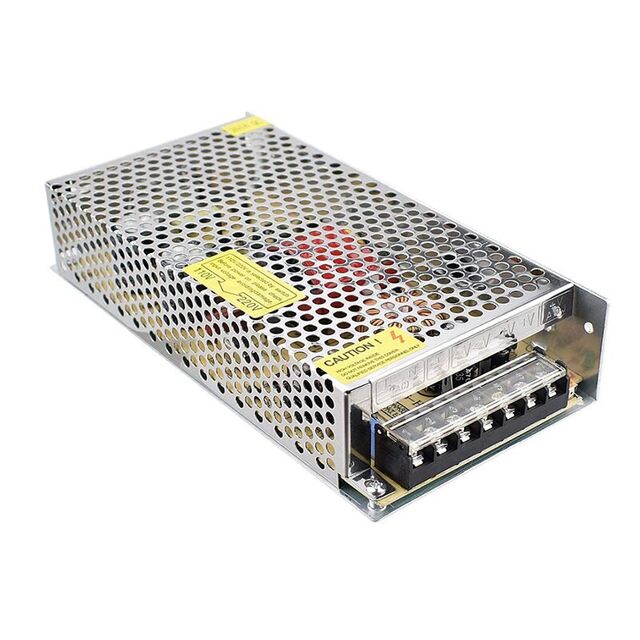

Switching Power Supply ALRS12V16R7AT
ActiveAnalog Technologies, Inc.
AC/DC CONVERTER 12V 200W
Switching Power Supply ALRS12V16R7AT
ActiveAnalog Technologies, Inc.
AC/DC CONVERTER 12V 200W
Description
General part information
Switching Power Supply ALRS12V16R7AT
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | Switching Power Supply ALRS12V16R7AT |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 16.7 A |
| Efficiency | 83 % |
| Features | Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Size / Dimension Height | 1.65 in |
| Size / Dimension Length | 7.8 in |
| Size / Dimension Width | 3.86 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 12 V |
