SM4087
ObsoleteFairview Microwave
ADAPT PLUG-JACK TNC 1.25 VSWR
SM4087
ObsoleteFairview Microwave
ADAPT PLUG-JACK TNC 1.25 VSWR
Description
General part information
SM4087

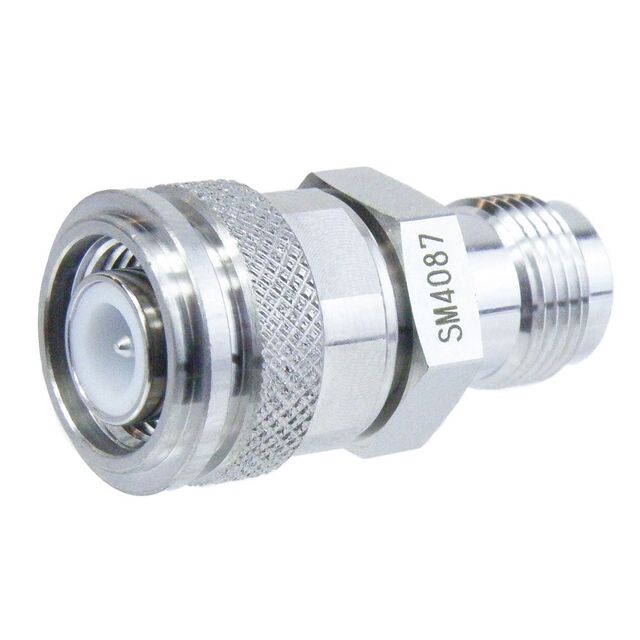

Adapter Coaxial Connector TNC Plug, Male Pin To TNC Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM4087 |
|---|---|
| Adapter Series | TNC to TNC |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | TNC Plug, Male Pin |
| Convert To (Adapter End) | TNC Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -45 °C |
| Style | Straight |
