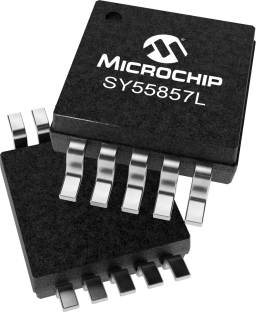

SY55857LKG

Active

Microchip Technology

IC TRANSLATOR UNIDIR 10MSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSY55857L - 3.3V, 2.5Gbps Any Input-to-LVPECL Dual Translator Datasheet

SY55857LKG

Active

Microchip Technology

IC TRANSLATOR UNIDIR 10MSOP

Deep-Dive with AI

DocumentsSY55857L - 3.3V, 2.5Gbps Any Input-to-LVPECL Dual Translator Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SY55857LKG

Channel Type	Unidirectional
Channels per Circuit	2
Data Rate	2.5 Gbps
Input Signal	LVDS, TTL, CMOS, HSTL, CML
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Signal	LVPECL
Output Type	Differential
Package / Case	10-MSOP, 10-TFSOP
Package / Case [x]	3 mm
Package / Case [x]	0.118 in
Supplier Device Package	10-MSOP
Translator Type	Mixed Signal

SY55857L Series

IC TRANSLATOR UNIDIR 10MSOP

Part	Output Signal	Input Signal	Number of Circuits	Translator Type	Package / Case	Package / Case [x]	Package / Case [x]	Data Rate	Supplier Device Package	Output Type	Mounting Type	Channels per Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Channel Type
Microchip Technology SY55857LKG	LVPECL	CML, CMOS, HSTL, LVDS, TTL	1	Mixed Signal	10-MSOP, 10-TFSOP	3 mm	0.118 in	2.5 Gbps	10-MSOP	Differential	Surface Mount	2	85 °C	-40 °C	Unidirectional

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.29
		25	$ 6.91
		100	$ 6.28
Microchip Direct	TUBE	1	$ 8.29
		25	$ 6.91
		100	$ 6.28
		1000	$ 6.07
		5000	$ 6.01

Description

General part information

SY55857L Series

The SY55857L is a fully differential, high-speed dual translator optimized to accept any logic standard from single-ended TTL/CMOS to differential LVDS, HSTL, or CML and translate it to LVPECL. Translation is guaranteed for speeds up to 2.5Gbps (2.5GHz toggle frequency). The SY55857L does not internally terminate its inputs, as different interfacing standards have different termination requirements.
