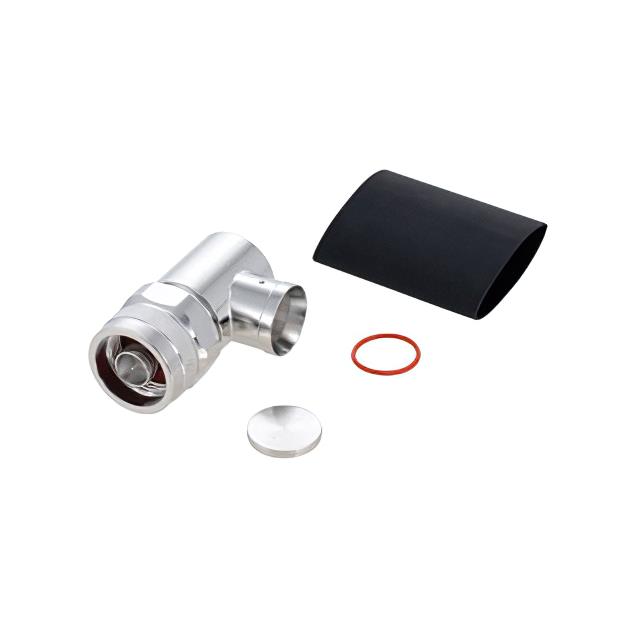

TC-SPO500-NM-RA-LP
ActivePasternack
N MALE RIGHT ANGLE LOW PIM CONNE
TC-SPO500-NM-RA-LP
ActivePasternack
N MALE RIGHT ANGLE LOW PIM CONNE
Description
General part information
TC-SPO500-NM-RA-LP
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TC-SPO500-NM-RA-LP |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.25 dB |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 2.5 kV |
