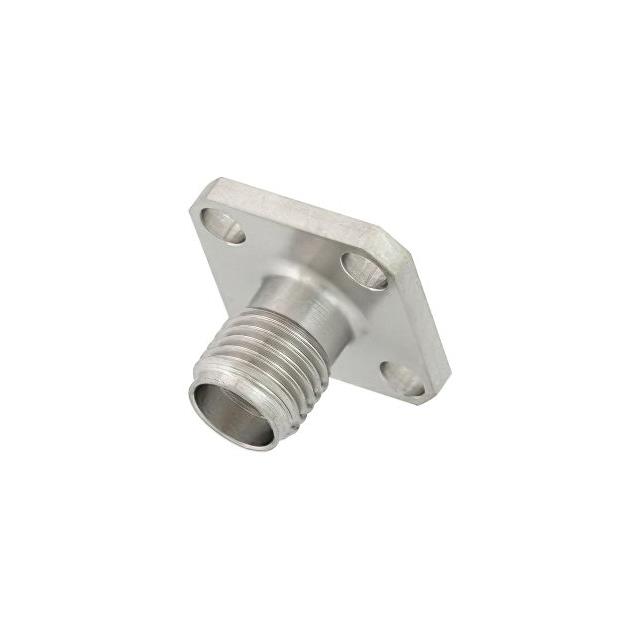

PE45053
ActivePasternack
SMA FEMALE FIELD REPLACEABLE CON
PE45053
ActivePasternack
SMA FEMALE FIELD REPLACEABLE CON
Description
General part information
PE45053
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45053 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 26 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.15 dB |
| Mating Cycles | 500 cycles |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
