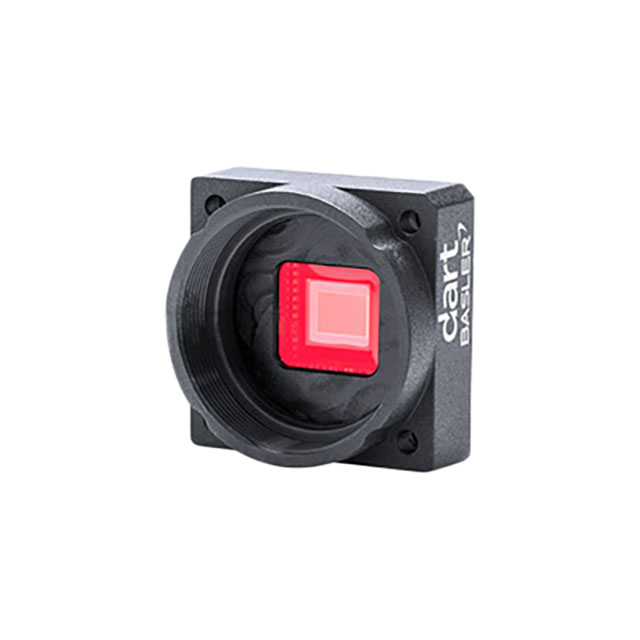

107143
ObsoleteBasler Inc.
1280 X 960, 54 FPS, COLOR
107143
ObsoleteBasler Inc.
1280 X 960, 54 FPS, COLOR
Description
General part information
107143
1280 X 960, 54 FPS, COLOR
Technical Specifications
Parameters and characteristics for this part
| Specification | 107143 |
|---|---|
| Color | RGB |
| Frames per Second | 54 |
| Height (Max) | 0.665 in |
| Interface | LVDS |
| Lens Mount | CS |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Pixel Size (Length) | 3.75 µm |
| Pixel Size (Width) | 3.75 µm |
| Resolution Height | 960 |
| Resolution Width | 1280 |
| Sensor | AR0134 |
| Shutter | Global |
| Size / Dimension Length | 1.142 in |
| Size / Dimension Width | 1.142 in |
| Type | CMOS |
