PEC11DACN

Active

Sullins Connector Solutions

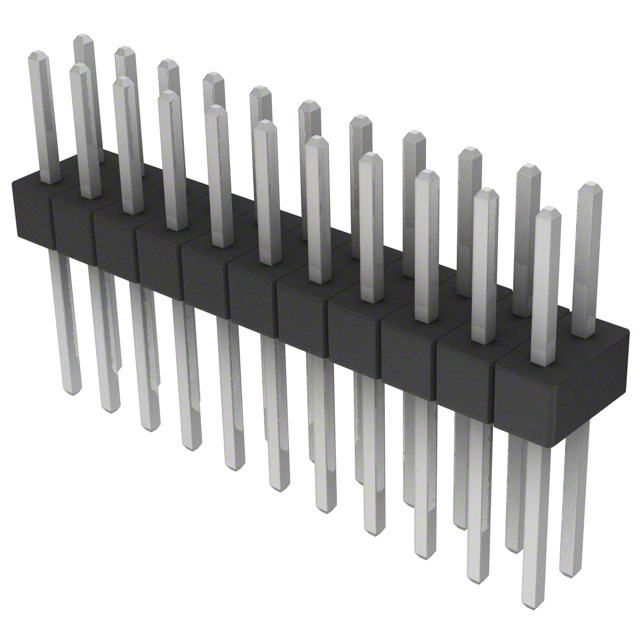

CONN HEADER VERT 22POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC11DACN

Active

Sullins Connector Solutions

CONN HEADER VERT 22POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC11DACN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.32 in
Contact Length - Post [x]	8.13 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	16.51 mm
Overall Contact Length	0.65 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC11 Series

Part	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Style	Number of Positions Loaded	Insulation Color	Contact Material	Connector Type	Mounting Type	Number of Rows	Current Rating (Amps)	Contact Shape	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Insulation Material	Termination	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Shrouding	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Contact Length - Mating [x]
Sullins Connector Solutions PEC11DAHN	20.83 mm	0.82 in	0.1 in	2.54 mm	Board to Board Cable	All	Black	Phosphor Bronze	Breakaway Header	Through Hole	2	3 A	Square	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	Male Pin	2.54 çm	100 çin	Push-Pull	125 °C	-65 ░C	1.15 in	29.21 mm	Polybutylene Terephthalate (PBT)	Solder	0.23 in	5.84 mm	22 positions	Unshrouded	Tin
Sullins Connector Solutions PEC11SBEN			0.1 in	2.54 mm	Board to Board Cable	All	Black	Phosphor Bronze	Breakaway Header	Through Hole Right Angle	1	3 A	Square	0.14 in	3.56 mm	UL94 V-0	2.54 µm	100 µin			Male Pin	2.54 çm	100 çin	Push-Pull	125 °C	-65 ░C			Polybutylene Terephthalate (PBT)	Solder	0.23 in	5.84 mm	11	Unshrouded	Tin	12.7 mm	0.5 in
Sullins Connector Solutions PEC11SBDN	10.16 mm	0.4 in	0.1 in	2.54 mm	Board to Board Cable	All	Black	Phosphor Bronze	Breakaway Header	Through Hole Right Angle	1	3 A	Square	0.14 in	3.56 mm	UL94 V-0	2.54 µm	100 µin			Male Pin	2.54 çm	100 çin	Push-Pull	125 °C	-65 ░C			Polybutylene Terephthalate (PBT)	Solder	0.23 in	5.84 mm	11	Unshrouded	Tin
Sullins Connector Solutions PEC11DACN	8.13 mm	0.32 in	0.1 in	2.54 mm	Board to Board Cable	All	Black	Phosphor Bronze	Breakaway Header	Through Hole	2	3 A	Square	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	Male Pin	2.54 çm	100 çin	Push-Pull	125 °C	-65 ░C		0.65 in	Polybutylene Terephthalate (PBT)	Solder	0.23 in	5.84 mm	22 positions	Unshrouded	Tin			16.51 mm
Sullins Connector Solutions PEC11DBBN	5.08 mm	0.2 in	0.1 in	2.54 mm	Board to Board Cable	All	Black	Phosphor Bronze	Breakaway Header	Through Hole Right Angle	2	3 A	Square	0.24 in	6.1 mm	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	Male Pin	2.54 çm	100 çin	Push-Pull	125 °C	-65 ░C			Polybutylene Terephthalate (PBT)	Solder	0.23 in	5.84 mm	22 positions	Unshrouded	Tin
Sullins Connector Solutions PEC11SGBN	5.08 mm	0.2 in	0.1 in	2.54 mm	Board to Board Cable	All	Black	Phosphor Bronze	Breakaway Header	Through Hole Right Angle	1	3 A	Square	0.14 in	3.56 mm	UL94 V-0	2.54 µm	100 µin			Male Pin	2.54 çm	100 çin	Push-Pull	125 °C	-65 ░C			Polybutylene Terephthalate (PBT)	Solder	0.318 "		11	Unshrouded	Tin				8.08 mm
Sullins Connector Solutions PEC11SFEN			0.1 in	2.54 mm	Board to Board Cable	All	Black	Phosphor Bronze	Breakaway Header	Through Hole	1	3 A	Square	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin			Male Pin	2.54 çm	100 çin	Push-Pull	125 °C	-65 ░C	0.938 in	23.83 mm	Polybutylene Terephthalate (PBT)	Solder	0.318 "		11	Unshrouded	Tin	13.21 mm	0.52 "		8.08 mm
Sullins Connector Solutions PEC11DADN	10.67 mm	0.42 in	0.1 in	2.54 mm	Board to Board Cable	All	Black	Phosphor Bronze	Breakaway Header	Through Hole	2	3 A	Square	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	Male Pin	2.54 çm	100 çin	Push-Pull	125 °C	-65 ░C	0.75 in	19.05 mm	Polybutylene Terephthalate (PBT)	Solder	0.23 in	5.84 mm	22 positions	Unshrouded	Tin
Sullins Connector Solutions PEC11DAAN	3.05 mm	0.12 in	0.1 in	2.54 mm	Board to Board Cable	All	Black	Phosphor Bronze	Breakaway Header	Through Hole	2	3 A	Square	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	Male Pin	2.54 çm	100 çin	Push-Pull	125 °C	-65 ░C	0.45 "	11.43 mm	Polybutylene Terephthalate (PBT)	Solder	0.23 in	5.84 mm	22 positions	Unshrouded	Tin
Sullins Connector Solutions PEC11DAGN	18.29 mm	0.72 "	0.1 in	2.54 mm	Board to Board Cable	All	Black	Phosphor Bronze	Breakaway Header	Through Hole	2	3 A	Square	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin	2.54 mm	0.1 in	Male Pin	2.54 çm	100 çin	Push-Pull	125 °C	-65 ░C	1.05 in	26.67 mm	Polybutylene Terephthalate (PBT)	Solder	0.23 in	5.84 mm	22 positions	Unshrouded	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.22
		10	$ 1.69
		100	$ 1.31
		500	$ 1.10
		1000	$ 1.02
		5000	$ 0.97

Description

General part information

PEC11 Series

Connector Header Through Hole 22 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
