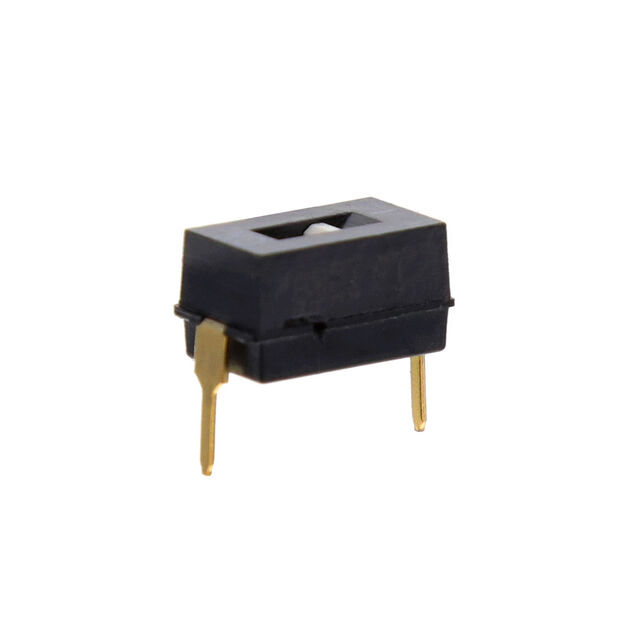

A6TN-1101
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6TN-1101
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A6TN-1101 | A6T Series |
|---|---|---|
| Actuator Level | Flush, Recessed | Flush, Recessed, Raised |
| Actuator Type | Slide (Standard) | Slide (Standard), Piano |
| Circuit | SPST | SPST |
| Contact Finish | - | Gold |
| Current Rating (Amps) | 25 mA | 25 mA |
| Electrical Life | 1000 Cycles | 1000 Cycles |
| Features | - | Tape Seal |
| Height Above Board | - | 3.6 - 5.8 mm |
| Height Above Board | - | 0.142 - 0.228 in |
| Height Above Board [z] | 0.189 in | 0.189 - 0.197 in |
| Height Above Board [z] | 4.8 mm | 4.8 - 5 mm |
| Length | - | 0.376 - 0.996 in |
| Length | - | 9.55 - 25.3 mm |
| Length [x] | 4.48 mm | 3.48 - 26.34 mm |
| Length [x] | 0.176 in | 0.137 - 1.037 " |
| Mechanical Life | - | 1000 Cycles |
| Mounting Type | Through Hole | Through Hole, Through Hole, Right Angle |
| Number of Positions | 1 | 1 - 10 |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 - -20 ░C |
| Pitch | Full | Full |
| Pitch [x] | 0.1 in | 0.1 in |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Termination Style | PC Pin | PC Pin |
| Voltage Rating | 24 VDC | 24 VDC |
| Washable | True | True, False |
A6T Series
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Electrical Life | Actuator Level | Length | Length | Circuit | Termination Style | Height Above Board [z] | Height Above Board [z] | Actuator Type | Pitch [x] | Pitch | Pitch [x] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions | Washable | Voltage Rating | Length [x] | Length [x] | Height Above Board | Height Above Board | Mechanical Life | Features | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A6TN-4101 | 1000 Cycles | Flush, Recessed | 0.476 in | 12.09 mm | SPST | PC Pin | 0.189 in | 4.8 mm | Slide (Standard) | 0.1 in | Full | 2.54 mm | 25 mA | -30 ░C | 85 °C | Through Hole | 4 | 24 VDC | ||||||||
Omron Electronics Inc-EMC Div A6T-3101(VNM) | 1000 Cycles | Flush, Recessed | SPST | PC Pin | Slide (Standard) | 0.1 in | Full | 2.54 mm | 25 mA | -20 C | 70 °C | Through Hole | 24 VDC | 8.56 mm | 0.337 " | 3.6 mm | 0.142 in | 1000 Cycles | ||||||||
Omron Electronics Inc-EMC Div A6TN-3104 | 1000 Cycles | Raised | 0.376 " | 9.55 mm | SPST | PC Pin | Slide (Standard) | 0.1 in | Full | 2.54 mm | 25 mA | -30 ░C | 85 °C | Through Hole | 24 VDC | 5.8 mm | 0.228 in | |||||||||
Omron Electronics Inc-EMC Div A6TN-4104 | 1000 Cycles | Raised | 0.476 in | 12.09 mm | SPST | PC Pin | Slide (Standard) | 0.1 in | Full | 2.54 mm | 25 mA | -30 ░C | 85 °C | Through Hole | 4 | 24 VDC | 5.8 mm | 0.228 in | ||||||||
Omron Electronics Inc-EMC Div A6T-2101(VNM) | 1000 Cycles | Flush, Recessed | SPST | PC Pin | Slide (Standard) | 0.1 in | Full | 2.54 mm | 25 mA | -20 C | 70 °C | Through Hole | 2 | 24 VDC | 6.02 mm | 0.237 " | 3.6 mm | 0.142 in | 1000 Cycles | |||||||
Omron Electronics Inc-EMC Div A6TN-5104 | 1000 Cycles | Raised | SPST | PC Pin | Slide (Standard) | 0.1 in | Full | 2.54 mm | 25 mA | -30 ░C | 85 °C | Through Hole | 24 VDC | 14.63 mm | 0.576 " | 5.8 mm | 0.228 in | |||||||||
Omron Electronics Inc-EMC Div A6T-0101(VNM) | 1000 Cycles | Flush, Recessed | SPST | PC Pin | Slide (Standard) | 0.1 in | Full | 2.54 mm | 25 mA | -20 C | 70 °C | Through Hole | 10 | 24 VDC | 26.34 mm | 1.037 in | 3.6 mm | 0.142 in | 1000 Cycles | |||||||
Omron Electronics Inc-EMC Div A6T-4101(VNM) | 1000 Cycles | Flush, Recessed | 0.437 in | 11.1 mm | SPST | PC Pin | Slide (Standard) | 0.1 in | Full | 2.54 mm | 25 mA | -20 C | 70 °C | Through Hole | 4 | 24 VDC | 3.6 mm | 0.142 in | 1000 Cycles | |||||||
Omron Electronics Inc-EMC Div A6T-1102(VNM) | 1000 Cycles | Flush, Recessed | SPST | PC Pin | Slide (Standard) | 0.1 in | Full | 2.54 mm | 25 mA | -20 C | 70 °C | Through Hole | 1 | 24 VDC | 3.48 mm | 0.137 " | 3.6 mm | 0.142 in | 1000 Cycles | Tape Seal | ||||||
Omron Electronics Inc-EMC Div A6TN-6104 | 1000 Cycles | Raised | 0.676 " | 17.17 mm | SPST | PC Pin | Slide (Standard) | 0.1 in | Full | 2.54 mm | 25 mA | -30 ░C | 85 °C | Through Hole | 6 | 24 VDC | 5.8 mm | 0.228 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.14 | |
| 10 | $ 1.10 | |||
| 25 | $ 1.03 | |||
| 100 | $ 0.89 | |||
| 300 | $ 0.81 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.70 | |||
| 2500 | $ 0.64 | |||
| 5000 | $ 0.59 | |||
Description
General part information
A6T Series
Dip Switch SPST 1 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Documents
Technical documentation and resources
