B58703M1103A001
ActiveEPCOS - TDK Electronics

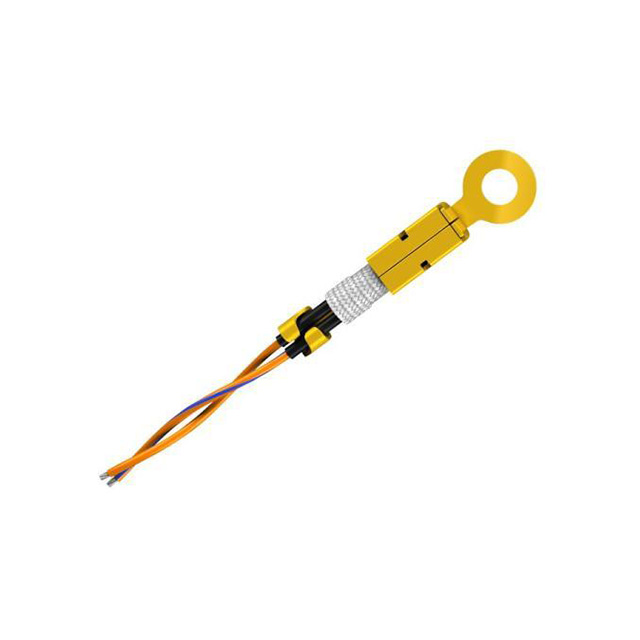

RING TONGUE TEMPERATURE SENSOR
B58703M1103A001
ActiveEPCOS - TDK Electronics
RING TONGUE TEMPERATURE SENSOR
Description
General part information
B58703M1103A001
NTC Thermistor 10k Bead with Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | B58703M1103A001 |
|---|---|
| B Value Tolerance | 1 % |
| Beta (B25/100) | 3625 K |
| Grade | Automotive |
| Length - Lead Wire | 25.79 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead with Terminal |
| Power - Max | 50 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 1 % |
