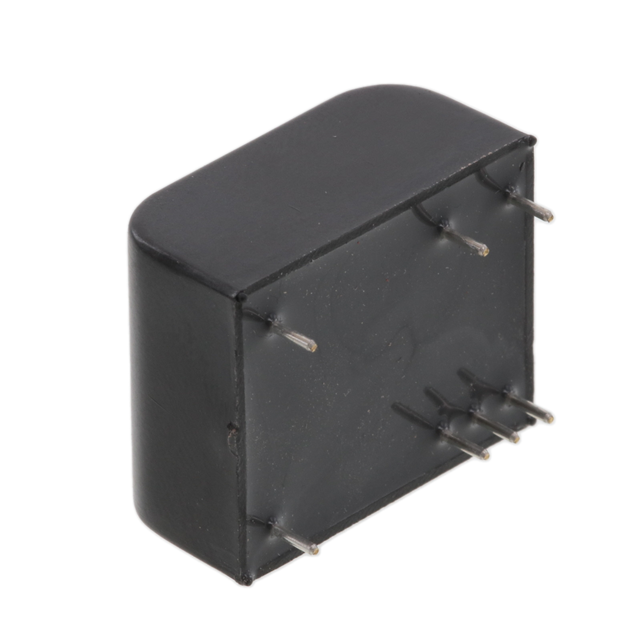

BPH1-08-50

Active

Cita Technologies, LLC.

DIP,27.9X23.2MM ISOLATED POWER MODULES ROHS

Search across all available documentation for this part.

Active

Cita Technologies, LLC.

DIP,27.9X23.2MM ISOLATED POWER MODULES ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 8V 3.3V 837MW

Part	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Number of Outputs	Voltage - Output 1	Applications	Current - Output (Max)
Cita Technologies, LLC. BPH1-08-33	837 mW	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	100 VAC	375 VAC	CB, cURus	Enclosed	70 %	70 °C	-30 ░C	Through Hole	7-DIP Module	2	8 V	ITE (Commercial)	53 mA, 125 mA
Cita Technologies, LLC. BPH1-08-50	1.3 W	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	100 VAC	375 VAC	CB, cURus	Enclosed	70 %	70 °C	-30 ░C	Through Hole	7-DIP Module	2	8 V	ITE (Commercial)	83 mA, 125 mA
Cita Technologies, LLC. BPH1-08-00		0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	100 VAC	375 VAC	CB, cURus	Enclosed	70 %	70 °C	-30 ░C	Through Hole	7-DIP Module	1	8 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 8V 83mA, 125mA 100 ~ 375 VAC Input
