74LVC126APW-Q100J

Active

Nexperia USA Inc.

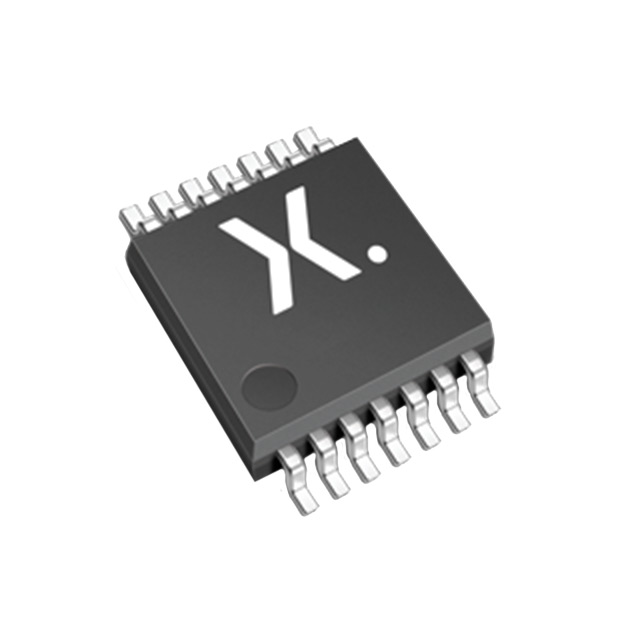

IC BUF NON-INVERT 3.6V 14TSSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

74LVC126APW-Q100J

Active

Nexperia USA Inc.

IC BUF NON-INVERT 3.6V 14TSSOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	74LVC126APW-Q100J	74LVC126 Series

Current - Output High, Low [custom]	24 mA	24 mA
Current - Output High, Low [custom]	24 mA	24 mA
Grade	Automotive	Automotive
Logic Type	Buffer, Non-Inverting	Buffer, Non-Inverting
Mounting Type	Surface Mount	Surface Mount
Number of Bits per Element	1	1
Number of Elements	4	4
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	3-State	3-State
Package / Case	14-TSSOP	14-SOIC, 14-TSSOP, 14-SSOP
Package / Case	-	3.9 mm
Package / Case	-	0.154 - 5.3 in
Package / Case	-	0.209 in
Package / Case [custom]	0.173 in	0.173 in
Package / Case [custom]	4.4 mm	4.4 mm
Qualification	AEC-Q100	AEC-Q100
Supplier Device Package	14-TSSOP	14-SO, 14-TSSOP, 14-SSOP
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.2 V	1.2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
		10	$ 0.39
		25	$ 0.36
		100	$ 0.29
		250	$ 0.27
		500	$ 0.23
		1000	$ 0.18
	Digi-Reel®	1	$ 0.45
		10	$ 0.39
		25	$ 0.36
		100	$ 0.29
		250	$ 0.27
		500	$ 0.23
		1000	$ 0.18
	Tape & Reel (TR)	2500	$ 0.11

74LVC126 Series

IC BUFFER NON-INVERT 3.6V 14SO

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case	Package / Case	Qualification	Supplier Device Package	Output Type	Grade	Logic Type	Number of Bits per Element	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Elements	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [custom]	Package / Case [custom]	Package / Case
Nexperia USA Inc. 74LVC126AD-Q100J Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-SO	1.2 V	3.6 V	3.9 mm	0.154 in	14-SOIC	AEC-Q100	14-SO	3-State	Automotive	Buffer, Non-Inverting	1	24 mA	24 mA	4	Surface Mount	-40 °C	125 °C
Nexperia USA Inc. 74LVC126APW-Q100J Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-TSSOP	1.2 V	3.6 V			14-TSSOP	AEC-Q100	14-TSSOP	3-State	Automotive	Buffer, Non-Inverting	1	24 mA	24 mA	4	Surface Mount	-40 °C	125 °C	0.173 in	4.4 mm
Nexperia USA Inc. 74LVC126ADB,118 Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-SSOP	1.2 V	3.6 V		5.3 mm	14-SSOP		14-SSOP	3-State		Buffer, Non-Inverting	1	24 mA	24 mA	4	Surface Mount	-40 °C	125 °C			0.209 in
Nexperia USA Inc. 74LVC126APW,112 Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-TSSOP	1.2 V	3.6 V			14-TSSOP		14-TSSOP	3-State		Buffer, Non-Inverting	1	24 mA	24 mA	4	Surface Mount	-40 °C	125 °C	0.173 in	4.4 mm
Nexperia USA Inc. 74LVC126ADB,112 Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-SSOP	1.2 V	3.6 V		5.3 mm	14-SSOP		14-SSOP	3-State		Buffer, Non-Inverting	1	24 mA	24 mA	4	Surface Mount	-40 °C	125 °C			0.209 in
Nexperia USA Inc. 74LVC126AD,118 Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-SO	1.2 V	3.6 V	3.9 mm	0.154 in	14-SOIC		14-SO	3-State		Buffer, Non-Inverting	1	24 mA	24 mA	4	Surface Mount	-40 °C	125 °C

Description

General part information

74LVC126 Series

Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-TSSOP
