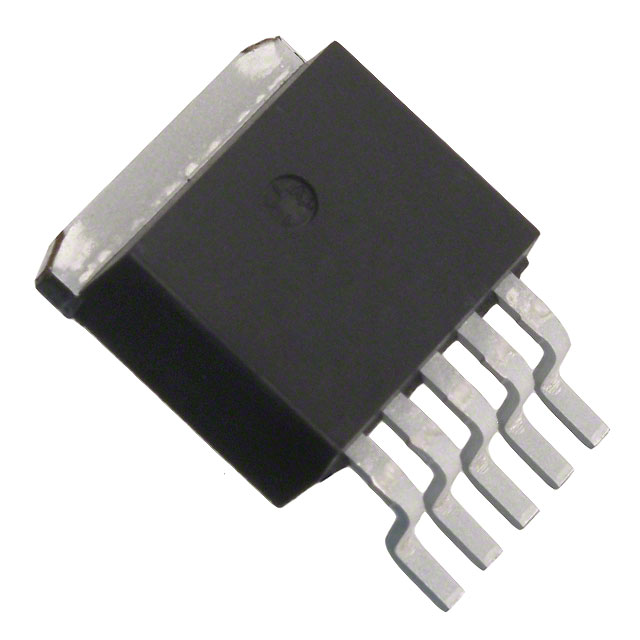

XRP29302ETBTR-L

Active

MaxLinear, Inc.

3A ADJUSTABLE 1.25V~16V POSITIVE ELECTRODE 16V TO-263-5 VOLTAGE REGULATORS - LINEAR, LOW DROP OUT (LDO) REGULATORS ROHS

Search across all available documentation for this part.

Active

MaxLinear, Inc.

3A ADJUSTABLE 1.25V~16V POSITIVE ELECTRODE 16V TO-263-5 VOLTAGE REGULATORS - LINEAR, LOW DROP OUT (LDO) REGULATORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	XRP29302ETBTR-L

Control Features	Enable
Current - Output	3 A
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	TO-263-6, TO-263BA, D2PAK (5 Leads + Tab)
Protection Features	Transient Voltage, Over Current, Reverse Polarity
Supplier Device Package	TO-263-5
Voltage - Input (Max) [Max]	16 V
Voltage - Output (Max)	16 V
Voltage - Output (Min/Fixed)	1.25 V
Voltage Dropout (Max) [Max]	0.8 V

3A ADJUSTABLE 1.25V~16V POSITIVE ELECTRODE 16V TO-263-5 VOLTAGE REGULATORS - LINEAR, LOW DROP OUT (LDO) REGULATORS ROHS

Part	Output Type	Mounting Type	Number of Regulators	Control Features	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Supplier Device Package	Output Configuration	Voltage Dropout (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Output (Max)	Current - Output	Package / Case
MaxLinear, Inc. XRP29302ETBTR-L	Adjustable	Surface Mount	1	Enable	1.25 V	125 °C	-40 °C	Over Current, Reverse Polarity, Transient Voltage	TO-263-5	Positive	0.8 V	16 V	16 V	3 A	D2PAK (5 Leads + Tab), TO-263-6, TO-263BA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 3A TO-263-5

Technical documentation and resources

No documents available
