826953-3

Active

TE Connectivity AMP Connectors

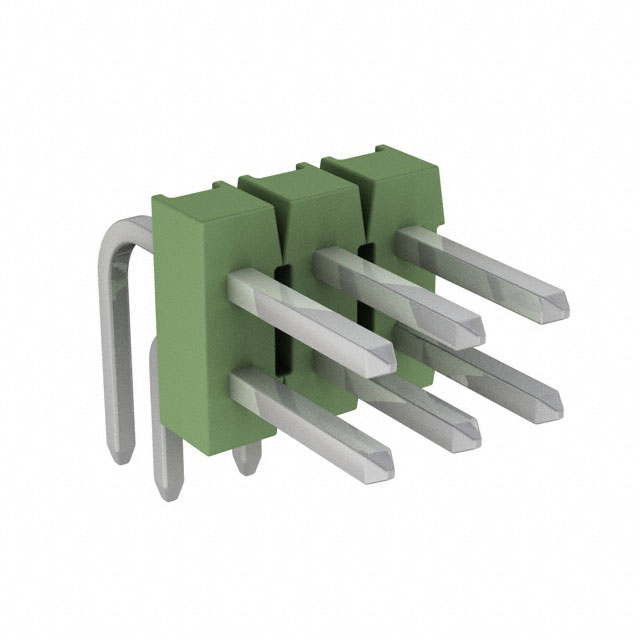

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

826953-3

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	14400	$ 0.19

Description

General part information

826953 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826953-3	826953 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	78.7 µin	78.7 µin
Contact Finish Thickness - Mating	2 µm	2 µm
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	5.56 mm	5.56 mm
Insulation Height [z]	0.219 in	0.219 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	6	6 - 72
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826953 Series

CONN HEADER R/A 64POS 2.54MM

Part	Number of Positions Loaded	Contact Shape	Style	Mounting Type	Shrouding	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Insulation Color	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Current Rating (Amps)	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Contact Length - Post	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Number of Rows
TE Connectivity AMP Connectors 3-826953-2	All	Square	Board to Board, Cable	Through Hole, Right Angle	Unshrouded	Male Pin	Breakaway, Header	-65 ░C	105 ░C	0.219 in	5.56 mm	2.54 mm	0.1 in	Solder	Green	Push-Pull	6.7 mm	0.264 in	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)	Copper Alloy	5 A	64	UL94 V-0	2 çm	78.7 çin	Tin	3.2 mm	0.126 in	0.1 in	2.54 mm	2
TE Connectivity AMP Connectors 3-826953-6	All	Square	Board to Board, Cable	Through Hole, Right Angle	Unshrouded	Male Pin	Breakaway, Header	-65 ░C	105 ░C	0.219 in	5.56 mm	2.54 mm	0.1 in	Solder	Green	Push-Pull	6.7 mm	0.264 in	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)	Copper Alloy	5 A	72	UL94 V-0	2 çm	78.7 çin	Tin	3.2 mm	0.126 in	0.1 in	2.54 mm	2
TE Connectivity AMP Connectors 826953-3	All	Square	Board to Board, Cable	Through Hole, Right Angle	Unshrouded	Male Pin	Breakaway, Header	-65 ░C	105 ░C	0.219 in	5.56 mm	2.54 mm	0.1 in	Solder	Green	Push-Pull	6.7 mm	0.264 in	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)	Copper Alloy	5 A	6	UL94 V-0	2 çm	78.7 çin	Tin	3.2 mm	0.126 in	0.1 in	2.54 mm	2
TE Connectivity AMP Connectors 1-826953-0	All	Square	Board to Board, Cable	Through Hole, Right Angle	Unshrouded	Male Pin	Breakaway, Header	-65 ░C	105 ░C	0.219 in	5.56 mm	2.54 mm	0.1 in	Solder	Green	Push-Pull	6.7 mm	0.264 in	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)	Copper Alloy	5 A	20	UL94 V-0	2 çm	78.7 çin	Tin	3.2 mm	0.126 in	0.1 in	2.54 mm	2
TE Connectivity AMP Connectors 826953-4	All	Square	Board to Board, Cable	Through Hole, Right Angle	Unshrouded	Male Pin	Breakaway, Header	-65 ░C	105 ░C	0.219 in	5.56 mm	2.54 mm	0.1 in	Solder	Green	Push-Pull	6.7 mm	0.264 in	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)	Copper Alloy	5 A	8	UL94 V-0	2 çm	78.7 çin	Tin	3.2 mm	0.126 in	0.1 in	2.54 mm	2
