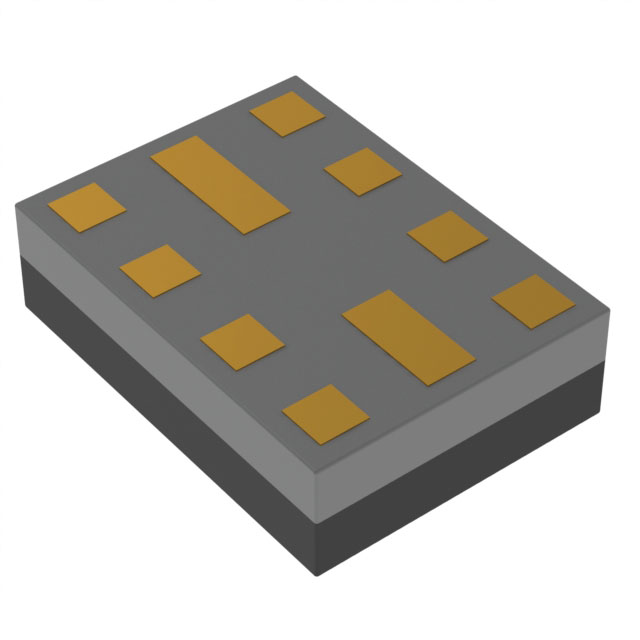

B39171B3804U210
ObsoleteQualcomm (RF front-end (RFFE) filters)
FILTER SAW 170.2MHZ 10-SMD
B39171B3804U210
ObsoleteQualcomm (RF front-end (RFFE) filters)
FILTER SAW 170.2MHZ 10-SMD
Description
General part information
B39171B3804U210
170.2MHz Frequency Cellular, GSM RF SAW Filter (Surface Acoustic Wave) 6.5dB Bandwidth 10-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | B39171B3804U210 |
|---|---|
| Applications | GSM, Cellular |
| Frequency - Center | 170.2 MHz |
| Height (Max) | 0.063 in |
| Insertion Loss | 6.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension Length | 0.748 in |
| Size / Dimension Width | 0.256 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
