953118-1

Active

TE Connectivity AMP Connectors

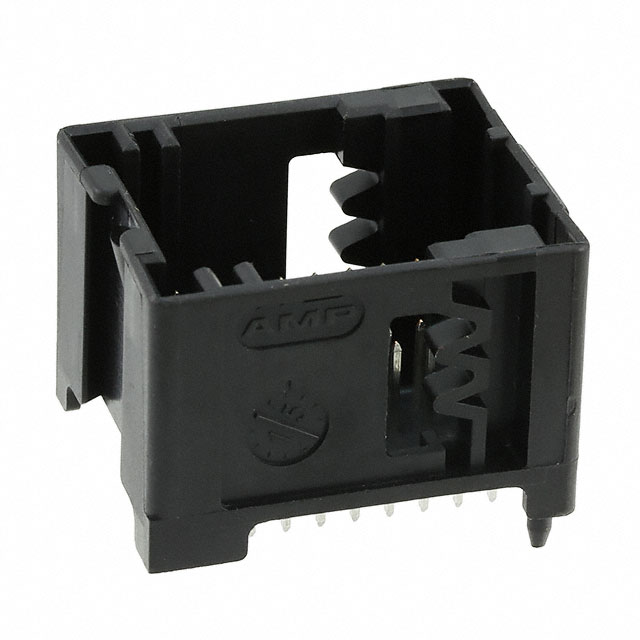

CONN HEADER VERT 40POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 40POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	953118-1	953118 Series

	-	-
Applications	Automotive	Automotive
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	2.92 mm	2.92 mm
Contact Length - Post	0.115 in	0.115 in
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Friction Lock	Friction Lock
Features	Board Guide	Board Guide
Insulation Color	Black	Black
Insulation Height	0.846 "	0.846 "
Insulation Height	21.5 mm	21.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole	Through Hole
Number of Positions	40	40
Number of Positions Loaded	All	All
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

CONN HEADER VERT 40POS 2.54MM

Part	Insulation Color	Contact Type	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Mounting Type	Insulation Material	Shrouding	Number of Positions Loaded	Number of Positions	Contact Shape	Applications	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Features	Style
TE Connectivity AMP Connectors 953118-1	Black	Male Pin	0.846 "	21.5 mm	85 °C	-40 °C	Tin	Friction Lock	0.1 in	2.54 mm	Solder	Header	Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall	All	40	Square	Automotive	2.92 mm	0.115 in	6.7 mm	0.264 in	Board Guide	Board to Cable/Wire
TE Connectivity AMP Connectors 953118-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 40 position 0.100" (2.54mm)
