FFC.00.250.CTAC29

Active

LEMO

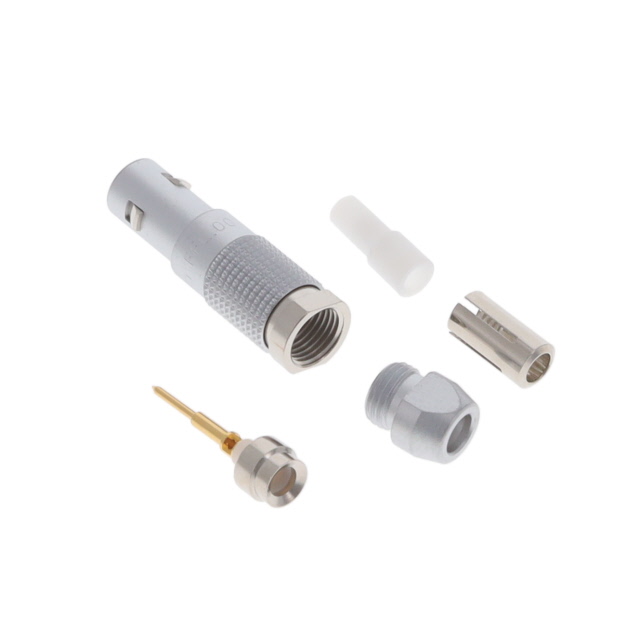

CONN NIMCAMA PLG STR 50OHM SOLDR

Deep-Dive with AI

Search across all available documentation for this part.

Documents00 Nim-Camac/01 Coaxial Catalog Datasheet

FFC.00.250.CTAC29

Active

LEMO

CONN NIMCAMA PLG STR 50OHM SOLDR

Deep-Dive with AI

Documents00 Nim-Camac/01 Coaxial Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFC.00.250.CTAC29	FFC.00 Series

Accessory Type	-	Collet, Back-Nut
Body Finish	Chrome	Chrome
Body Material	Brass	Brass
Cable Group	RG-316	RG-178, RG-195A, 174A, 187, RG-174, 179, 188, 316, RG-403, RG-178B, 196A, RG-174A, RG-316, RG-58C, 142B
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Color	-	Silver
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549, Triaxial, Coaxial
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
For Use With/Related Products	-	00 Series Connector, 1B Series Connector, 00
Housing Color	Silver	Silver, Natural
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Material	-	Brass
Mating Cycles	5000	1000 - 5000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	260 ░C	250 - 260 ░C
Operating Temperature [Min]	-55 °C	-55 - -50 °C
Shield Termination	Clamp	Clamp
Voltage Rating	700 VDC	700 VDC

FFC.00 Series

CONN TRIAX PLUG 50 OHM SOLDER

Part	Mating Cycles	Connector Style	Connector Type	Dielectric Material	Housing Color	Cable Group	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Body Finish	Voltage Rating	Center Contact Material	Contact Termination	Impedance	Center Contact Plating	Shield Termination	Fastening Type	Ingress Protection	For Use With/Related Products	Accessory Type	Color	Material	Number of Ports
LEMO FFC.00.650.CLAC31Z	5000	NIM-CAMAC CD/N 549, Triaxial	Male Pin, Plug	Polyetheretherketone (PEEK)	Silver	RG-178	Free Hanging (In-Line)	-55 °C	260 ░C	Brass	Chrome	700 VDC	Brass	Solder	50 Ohms	Gold	Clamp	Push-Pull	IP50
LEMO FFC.00.719.CN																				00 Series Connector	Collet
LEMO FFC.00.130.LC																				00 Series Connector	Back-Nut, Collet	Silver	Brass
LEMO FFC.00.250.CTAD42Z	5000	NIM-CAMAC CD/N 549	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Silver	RG-195A	Free Hanging (In-Line)	-55 °C	260 ░C	Brass	Chrome	700 VDC	Brass	Solder	50 Ohms	Gold	Clamp	Push-Pull	IP50					1
LEMO FFC.00.250.CTAC27	5000	NIM-CAMAC CD/N 549	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Silver	174A, 179, 187, 188, 316, RG-174	Free Hanging (In-Line)	-55 °C	260 ░C	Brass	Chrome	700 VDC	Brass	Solder	50 Ohms	Gold	Clamp	Push-Pull	IP50					1
LEMO FFC.00.650.CLAC35	5000	NIM-CAMAC CD/N 549, Triaxial	Male Pin, Plug	Polyetheretherketone (PEEK)	Silver	RG-403	Free Hanging (In-Line)	-55 °C	260 ░C	Brass	Chrome	700 VDC	Brass	Solder	50 Ohms	Gold	Clamp	Push-Pull	IP50					1
LEMO FFC.00.250.CTAD56	5000	NIM-CAMAC CD/N 549	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Silver		Free Hanging (In-Line)	-55 °C	260 ░C	Brass	Chrome	700 VDC	Brass	Solder	50 Ohms	Gold	Clamp	Push-Pull	IP50					1
LEMO FFC.00.250.CTAC22Z	5000	NIM-CAMAC CD/N 549	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Silver	196A, RG-178B	Free Hanging (In-Line)	-55 °C	260 ░C	Brass	Chrome	700 VDC	Brass	Solder	50 Ohms	Gold	Clamp	Push-Pull	IP50					1
LEMO FFC.00.250.CTAC31	5000	NIM-CAMAC CD/N 549	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Silver	RG-174A	Free Hanging (In-Line)	-55 °C	260 ░C	Brass	Chrome	700 VDC	Brass	Solder	50 Ohms	Gold	Clamp	Push-Pull	IP50					1
LEMO FFC.00.250.CTAC29	5000	NIM-CAMAC CD/N 549	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Silver	RG-316	Free Hanging (In-Line)	-55 °C	260 ░C	Brass	Chrome	700 VDC	Brass	Solder	50 Ohms	Gold	Clamp	Push-Pull	IP50					1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.44
		10	$ 18.07
		25	$ 16.36
		50	$ 15.20
		100	$ 14.15
		250	$ 12.92
		500	$ 12.09

Description

General part information

FFC.00 Series

NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

00 Nim-Camac/01 Coaxial Catalog

Datasheet
