0897015.N
ObsoleteLITTELFUSE

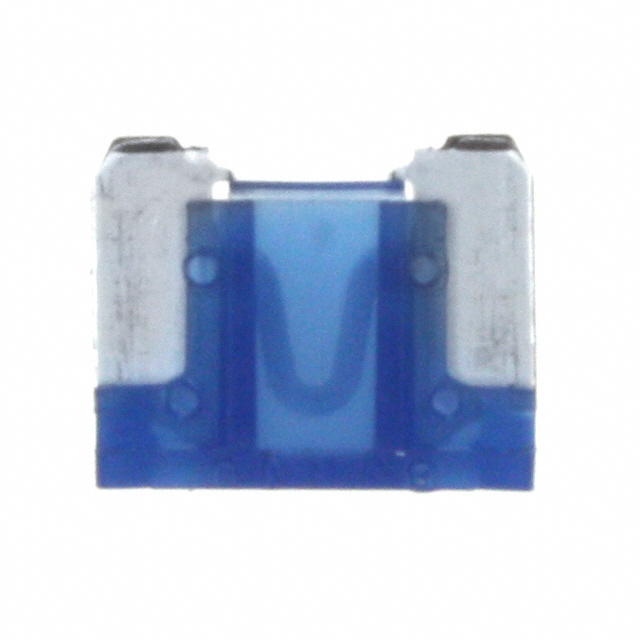

FUSE AUTO 15A 58VDC BLADE MINI
0897015.N
ObsoleteLITTELFUSE
FUSE AUTO 15A 58VDC BLADE MINI
Description
General part information
0897015.N
15 A AC 58 V DC Fuse Automotive Requires Holder Blade, Miniature (Low Profile)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0897015.N |
|---|---|
| Breaking Capacity | 1 kA |
| Color | Blue |
| Current Rating | 15 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Miniature (Low Profile), Blade |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.344 in |
| Size / Dimension Length | 0.429 in |
| Size / Dimension Width | 0.15 in |
| Voltage Rating - DC | 58 VDC |
