11K5015-JCNB

Active

Grayhill Inc.

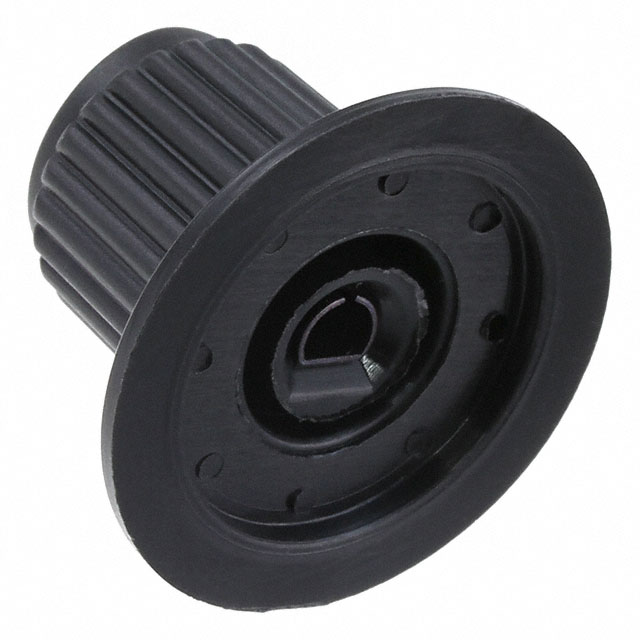

KNOB, D SHAFT, 3.175 MM, NYLON (POLYAMIDE), ROUND KNURLED WITH INDICATOR LINE, 22.71 MM

Search across all available documentation for this part.

Active

Grayhill Inc.

KNOB, D SHAFT, 3.175 MM, NYLON (POLYAMIDE), ROUND KNURLED WITH INDICATOR LINE, 22.71 MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11K5015-JCNB	11K5015 Series

Accessory Type	-	Knob - Black
Color	Black	Black, Gray
Diameter [diameter]	22.71 mm	22.71 mm
Diameter [diameter]	0.894 in	0.894 in
Features	Spring Clip	Spring Clip, Set Screws
For Use With/Related Products	-	Rotary Switches and Encoders
Height [z]	16.81 mm	16.81 mm
Height [z]	0.662 in	0.662 in
Indicator [custom]	Arrow on Skirt	Arrow on Skirt
Material	Plastic	Nylon, Plastic
Shaft Size	3.18 mm	3.18 - 12.7 mm
Shaft Size	0.125 in	0.125 - 0.5 in
Style	Cylindrical with Skirt	Cylindrical with Skirt
Type	Straight, Knurled	Serrated, Straight, Knurled

KNOB 1/4" SHAFT GRAY COLOR

Part	For Use With/Related Products	Material	Height [z]	Height [z]	Indicator [custom]	Style	Diameter [diameter]	Diameter [diameter]	Type	Color	Shaft Size	Shaft Size	Features	Accessory Type
Grayhill Inc. 11K5015-KMNG	Rotary Switches and Encoders
Grayhill Inc. 11K5015-KCNB		Nylon	16.81 mm	0.662 in	Arrow on Skirt	Cylindrical with Skirt	22.71 mm	0.894 in	Serrated	Black	0.5 in	12.7 mm
Grayhill Inc. 11K5015-ECNB		Plastic	16.81 mm	0.662 in	Arrow on Skirt	Cylindrical with Skirt	22.71 mm	0.894 in	Knurled, Straight	Black	0.157 "	4 mm	Spring Clip
Grayhill Inc. 11K5015-KCNG		Plastic	16.81 mm	0.662 in	Arrow on Skirt	Cylindrical with Skirt	22.71 mm	0.894 in	Knurled, Straight	Gray	0.25 in	6.35 mm	Spring Clip
Grayhill Inc. 11K5015-JMNG	Rotary Switches and Encoders
Grayhill Inc. 11K5015-KMNB	Rotary Switches and Encoders													Knob - Black
Grayhill Inc. 11K5015-JCNG		Plastic	16.81 mm	0.662 in	Arrow on Skirt	Cylindrical with Skirt	22.71 mm	0.894 in	Knurled, Straight	Gray	0.125 in	3.18 mm	Spring Clip
Grayhill Inc. 11K5015-EMNG		Plastic	16.81 mm	0.662 in	Arrow on Skirt	Cylindrical with Skirt	22.71 mm	0.894 in	Knurled, Straight	Gray	0.157 "	4 mm	Set Screws
Grayhill Inc. 11K5015-JCNB		Plastic	16.81 mm	0.662 in	Arrow on Skirt	Cylindrical with Skirt	22.71 mm	0.894 in	Knurled, Straight	Black	0.125 in	3.18 mm	Spring Clip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Knurled, Straight Knob 0.125" (3.18mm) Shaft with Arrow on Skirt Plastic Black
