2987891
ActivePhoenix Contact

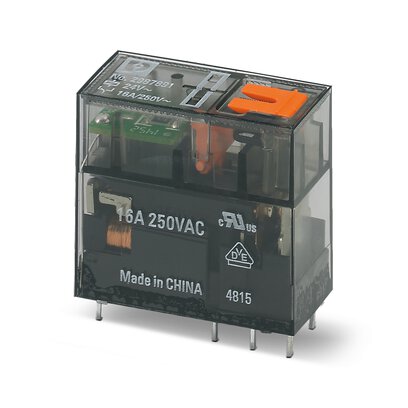

RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2987891
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2987891 | 29878 Series |
|---|---|---|
| Approval Agency | cULus, EAC, UR | cULus, EAC, UR |
| Coil Current | 32 mA | 18 - 32 mA |
| Coil Resistance | 750 Ohms | 1.3 - 750 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VAC | 24 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A | 16 A |
| Features | - | Mechanical Indicator, Diode, Lighted Indicator |
| Mounting Type | Through Hole | Through Hole |
| Operate Time | 12 ms | 9 - 12 ms |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 8 ms | 6 - 8 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | PC Pin | PC Pin |
29878 Series
POWER RELAY, SPDT, 3A, 250A ROHS COMPLIANT: YES
| Part | Coil Resistance | Mounting Type | Contact Form | Relay Type | Termination Style | Operate Time | Coil Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Coil Current | Coil Type | Features | Contact Rating (Current) | Contact Material | Switching Voltage | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2987888 | 1.3 kOhms | Through Hole | SPDT (1 Form C) | General Purpose | PC Pin | 9 ms | 24 VDC | -40 °C | 70 °C | 6 ms | 18 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator | 16 A | Silver Nickel (AgNi) | 250 VAC, 250 VDC | cULus, EAC, UR |
Phoenix Contact 2987891 | 750 Ohms | Through Hole | SPDT (1 Form C) | General Purpose | PC Pin | 12 ms | 24 VAC | -40 °C | 70 °C | 8 ms | 32 mA | Non Latching | 16 A | Silver Nickel (AgNi) | 250 VAC, 250 VDC | cULus, EAC, UR |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.66 | |
| 10 | $ 8.09 | |||
| 50 | $ 7.44 | |||
| 100 | $ 6.88 | |||
| 250 | $ 6.55 | |||
| 500 | $ 6.52 | |||
Description
General part information
29878 Series
General Purpose Relay SPDT (1 Form C) 24VAC Coil Through Hole
