PK-2410TD750-R

Active

Eaton - Electronics Division

FUSE BRD MT 750MA 250VAC 60VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSMD Fuses and MOVs Datasheet

PK-2410TD750-R

Active

Eaton - Electronics Division

FUSE BRD MT 750MA 250VAC 60VDC

Deep-Dive with AI

DocumentsSMD Fuses and MOVs Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.29

Description

General part information

2410TD Series

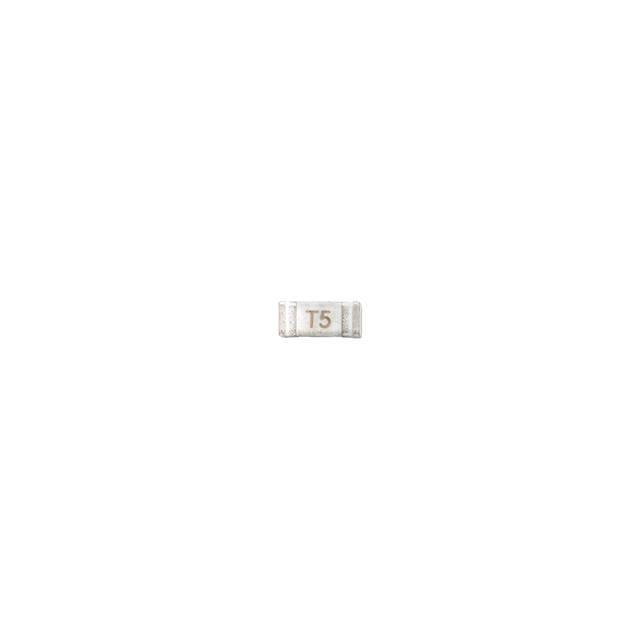

750 mA 250 V AC 60 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block

Documents

Technical documentation and resources

SMD Fuses and MOVs

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PK-2410TD750-R	2410TD Series

Breaking Capacity @ Rated Voltage	50 A	50 A
Current Rating (Amps)	750 mA	0.5 - 750 A
DC Cold Resistance	0.235 Ohms	0.0087 - 19.5 Ohms
Fuse Type	Board Mount	Board Mount
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2-SMD, Square End Block	2-SMD, Square End Block
Response Time	Slow Blow	Slow Blow
Size / Dimension	0.24 in, 0.107 "	0.107 - 0.24 in
Size / Dimension	6.1 mm, 2.72 mm	2.72 - 6.1 mm
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	60 VDC	60 VDC

2410TD Series

FUSE BRD MT 2.5A 250VAC 60VDC

Part	Package / Case	Current Rating (Amps)	DC Cold Resistance	Breaking Capacity @ Rated Voltage	Fuse Type	Voltage Rating - DC	Size / Dimension	Size / Dimension	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Response Time
Eaton - Electronics Division PK-2410TD2-5-R	2-SMD, Square End Block	2.5 A	0.035 Ohms	50 A	Board Mount	60 VDC	0.107 ", 0.24 in	2.72 mm, 6.1 mm	Surface Mount	-55 °C	125 °C	250 V	Slow Blow
Eaton - Electronics Division TR1-2410TD4-R	2-SMD, Square End Block	4 A	0.0185 Ohms	50 A	Board Mount	60 VDC	0.107 ", 0.24 in	2.72 mm, 6.1 mm	Surface Mount	-55 °C	125 °C	250 V	Slow Blow
Eaton - Electronics Division TR1-2410TD500-R	2-SMD, Square End Block	0.5 A		50 A	Board Mount	60 VDC	0.107 ", 0.24 in	2.72 mm, 6.1 mm	Surface Mount	-55 °C	125 °C	250 V	Slow Blow
Eaton - Electronics Division TR1-2410TD3-5-R	2-SMD, Square End Block	3.5 A	19.5 mOhms	50 A	Board Mount	60 VDC	0.107 ", 0.24 in	2.72 mm, 6.1 mm	Surface Mount	-55 °C	125 °C	250 V	Slow Blow
Eaton - Electronics Division PK-2410TD7-R	2-SMD, Square End Block	7 A	0.0087 Ohms	50 A	Board Mount	60 VDC	0.107 ", 0.24 in	2.72 mm, 6.1 mm	Surface Mount	-55 °C	125 °C	250 V	Slow Blow
Eaton - Electronics Division PK-2410TD2-R	2-SMD, Square End Block	2 A	0.048 Ohms	50 A	Board Mount	60 VDC	0.107 ", 0.24 in	2.72 mm, 6.1 mm	Surface Mount	-55 °C	125 °C	250 V	Slow Blow
Eaton - Electronics Division PK-2410TD5-R	2-SMD, Square End Block	5 A	0.0133 Ohms	50 A	Board Mount	60 VDC	0.107 ", 0.24 in	2.72 mm, 6.1 mm	Surface Mount	-55 °C	125 °C	250 V	Slow Blow
Eaton - Electronics Division PK-2410TD3-5-R	2-SMD, Square End Block	3.5 A	19.5 mOhms	50 A	Board Mount	60 VDC	0.107 ", 0.24 in	2.72 mm, 6.1 mm	Surface Mount	-55 °C	125 °C	250 V	Slow Blow
Eaton - Electronics Division PK-2410TD500-R	2-SMD, Square End Block	0.5 A		50 A	Board Mount	60 VDC	0.107 ", 0.24 in	2.72 mm, 6.1 mm	Surface Mount	-55 °C	125 °C	250 V	Slow Blow
Eaton - Electronics Division PK-2410TD1-R	2-SMD, Square End Block	1 A	0.168 Ohms	50 A	Board Mount	60 VDC	0.107 ", 0.24 in	2.72 mm, 6.1 mm	Surface Mount	-55 °C	125 °C	250 V	Slow Blow
