BTS500251TEAAUMA1

Active

Infineon Technologies

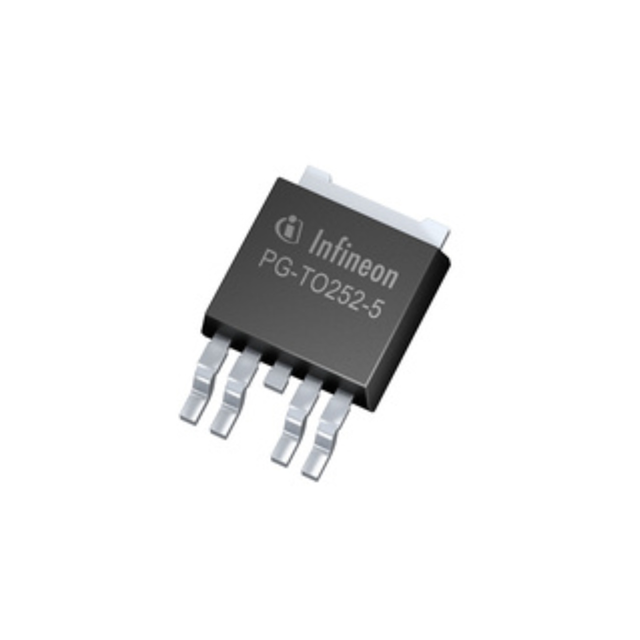

THE BTS50025-1TEA IS A 2.5MΩ SINGLE CHANNEL SMART HIGH-SIDE POWER SWITCH, EMBEDDED IN A PG-TO-252-5-11 PACKAGE, PROVIDING PROTECTIVE FUNCTIONS AND DIAGNOSIS.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

BTS500251TEAAUMA1

Active

Infineon Technologies

THE BTS50025-1TEA IS A 2.5MΩ SINGLE CHANNEL SMART HIGH-SIDE POWER SWITCH, EMBEDDED IN A PG-TO-252-5-11 PACKAGE, PROVIDING PROTECTIVE FUNCTIONS AND DIAGNOSIS.

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTS500251TEAAUMA1

Current - Output (Max) [Max]	24 A
Fault Protection	Over Voltage, Reverse Battery, Short Circuit, Over Temperature
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	DPAK (4 Leads + Tab), TO-252-5, TO-252AD
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	5 mOhm
Supplier Device Package	PG-TO252-5-11
Switch Type	General Purpose
Voltage - Load [Max]	18 V
Voltage - Load [Min]	5.8 V
Voltage - Supply (Vcc/Vdd)	False

BTS50025 Series

Part	Interface	Switch Type	Input Type	Current - Output (Max) [Max]	Fault Protection	Package / Case	Grade	Mounting Type	Qualification	Output Type	Supplier Device Package	Output Configuration	Voltage - Load [Max]	Voltage - Load [Min]	Rds On (Typ)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output [custom]
Infineon Technologies BTS500251TADATMA2	On/Off	General Purpose	Non-Inverting	25 A	Over Temperature Over Voltage Reverse Battery Short Circuit	D2PAK TO-263-7 TO-263CB	Automotive	Surface Mount	AEC-Q100	N-Channel	P/PG-TO-263-7-10	High Side	18 V	8 V	3.9 mOhm	1	150 °C	-40 °C	1:1
Infineon Technologies BTS500251TEAAUMA1	On/Off	General Purpose	Non-Inverting	24 A	Over Temperature Over Voltage Reverse Battery Short Circuit	DPAK (4 Leads + Tab) TO-252-5 TO-252AD		Surface Mount		N-Channel	PG-TO252-5-11	High Side	18 V	5.8 V	5 mOhm	1	150 °C	-40 °C	1:1
Infineon Technologies BTS500251TADATMA1	On/Off	General Purpose	Non-Inverting	25 A	Over Temperature Over Voltage Reverse Battery Short Circuit	D2PAK TO-263-7 TO-263CB	Automotive	Surface Mount	AEC-Q100	N-Channel	P/PG-TO-263-7-10	High Side	18 V	8 V	3.9 mOhm	1	150 °C	-40 °C	1:1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.34
		10	$ 3.88
		25	$ 3.49
		100	$ 3.18
		250	$ 2.87
		500	$ 2.57
		1000	$ 2.17
	Digi-Reel®	1	$ 4.34
		10	$ 3.88
		25	$ 3.49
		100	$ 3.18
		250	$ 2.87
		500	$ 2.57
		1000	$ 2.17
	Tape & Reel (TR)	2500	$ 2.06
		5000	$ 1.98
Newark	Each (Supplied on Cut Tape)	1	$ 3.89
		10	$ 3.37
		25	$ 3.18
		50	$ 3.06
		100	$ 2.93
		250	$ 2.78
		500	$ 2.67
		1000	$ 2.57

Description

General part information

BTS50025 Series

It features Reverse ON functionality protecting the device in reverse polarity condition (reverse battery). The power transistor is built by an N-channel MOSFET with charge pump. It is specially designed to drive high current nominal loads up to 24 A, for application like heaters, glow plugs, fan and pump in the harsh automotive environment.
