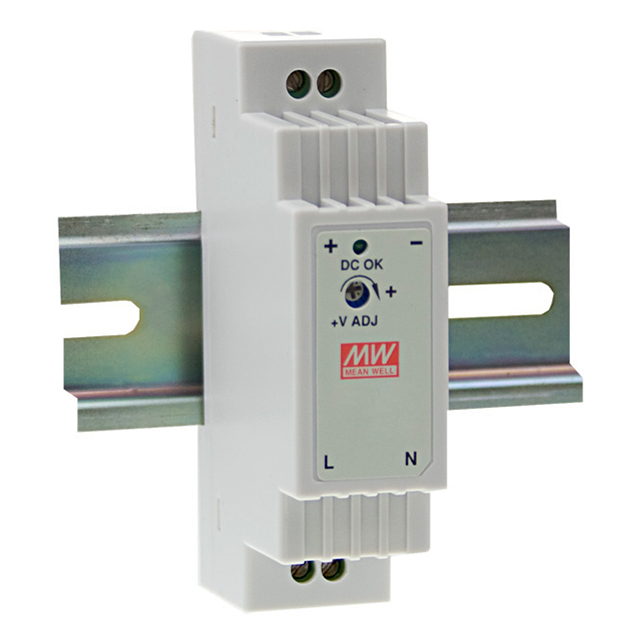

DR-15-15
ObsoleteMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 15V 15W
DR-15-15
ObsoleteMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 15V 15W
Description
General part information
DR-15-15
AC/DC DIN RAIL SUPPLY 15V 15W
Technical Specifications
Parameters and characteristics for this part
| Specification | DR-15-15 |
|---|---|
| AC Voltage - Input (Max) | 264 VAC |
| AC Voltage - Input (Min) | 85 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CB, TUV, CE |
| Current - Output (Max) | 1 A |
| DC Voltage - Input (Max) | 370 V |
| DC Voltage - Input (Min) | 120 V |
| Efficiency | 83.5 % |
| Features | Universal Input, Adjustable Output |
| Input Type | AC or DC, DC, AC |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 15 W |
| Size / Dimension Height | 3.66 in |
| Size / Dimension Length | 2.2 in |
| Size / Dimension Width | 0.98 in |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15 V |
