222-3343-00-0602J

Active

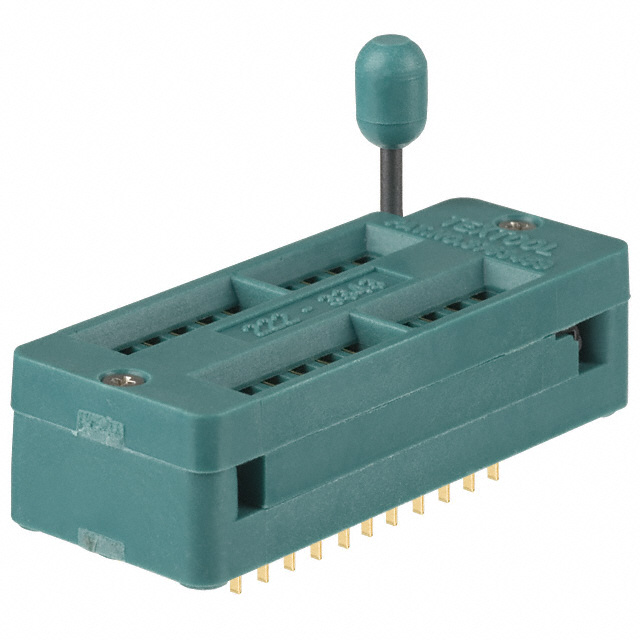

IC & COMPONENT SOCKET, 22 CONTACTS, DIP SOCKET, 2.54 MM, 222 SERIES, 10.16 MM, BERYLLIUM COPPER

Search across all available documentation for this part.

Active

IC & COMPONENT SOCKET, 22 CONTACTS, DIP SOCKET, 2.54 MM, 222 SERIES, 10.16 MM, BERYLLIUM COPPER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	222-3343-00-0602J	222 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	30 µin	30 µin
Contact Finish Thickness - Post	0.76 µm	0.76 µm
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post	Beryllium Copper	Beryllium Copper
Convert To (Adapter End)	-	0.4 in
Convert To (Adapter End)	-	DIP
Convert To (Adapter End)	-	10.16 mm
Current Rating (Amps)	1 A	1 A
Features	Closed Frame	Closed Frame
Housing Material	Polysulfone (PSU), Glass Filled	Polysulfone (PSU), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Connector	Through Hole, Connector
Number of Pins	-	22
Number of Positions or Pins (Grid)	22	22
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Press-Fit	Solder, Wire Wrap, Press-Fit
Termination Post Length	0.11 in	0.11 - 0.13 in
Termination Post Length	2.78 mm	2.78 - 3.3 mm
Termination Post Length	-	0.62 in
Termination Post Length	-	15.75 mm
Type	DIP, ZIP, ZIF	DIP, ZIP, ZIF
Type	10.16 mm	10.16 mm
Type	0.4 in	0.4 in

TEXTOOL RECEPTACLES FOR DIP SOCK

Part	Contact Finish - Mating	Termination	Mounting Type	Number of Pins	Housing Material	Material Flammability Rating	Contact Material - Post	Current Rating (Amps)	Pitch - Post	Pitch - Post	Contact Finish - Post	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination Post Length	Termination Post Length	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Termination Post Length [x]	Termination Post Length [x]	Type	Type	Type	Number of Positions or Pins (Grid)
3M 222-3343-09-0602J	Gold	Solder	Through Hole	22	Polysulfone (PSU), Glass Filled	UL94 V-0	Beryllium Copper	1 A	2.54 mm	0.1 in	Gold	Beryllium Copper	-55 °C	125 °C	30 µin	0.76 µm	3.3 mm	0.13 in	Closed Frame	30 Áin	0.76 Ám	0.1 in	2.54 mm	0.4 in	DIP	10.16 mm
3M 222-3343-19-0602J	Gold	Wire Wrap	Through Hole	22	Polysulfone (PSU), Glass Filled	UL94 V-0	Beryllium Copper	1 A	2.54 mm	0.1 in	Gold	Beryllium Copper	-55 °C	125 °C	30 µin	0.76 µm			Closed Frame	30 Áin	0.76 Ám	0.1 in	2.54 mm	0.4 in	DIP	10.16 mm	0.62 in	15.75 mm
3M 222-3343-00-0602J	Gold	Press-Fit	Connector		Polysulfone (PSU), Glass Filled	UL94 V-0	Beryllium Copper	1 A	2.54 mm	0.1 in	Gold	Beryllium Copper	-55 °C	125 °C	30 µin	0.76 µm	2.78 mm	0.11 in	Closed Frame	30 Áin	0.76 Ám	0.1 in	2.54 mm						DIP, ZIF, ZIP	10.16 mm	0.4 in	22

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 (2 x 11) Pos DIP, ZIF (ZIP), 0.4" (10.16mm) Row Spacing Socket Gold Connector
