T4130412041-000
ActiveTE Connectivity AMP Connectors

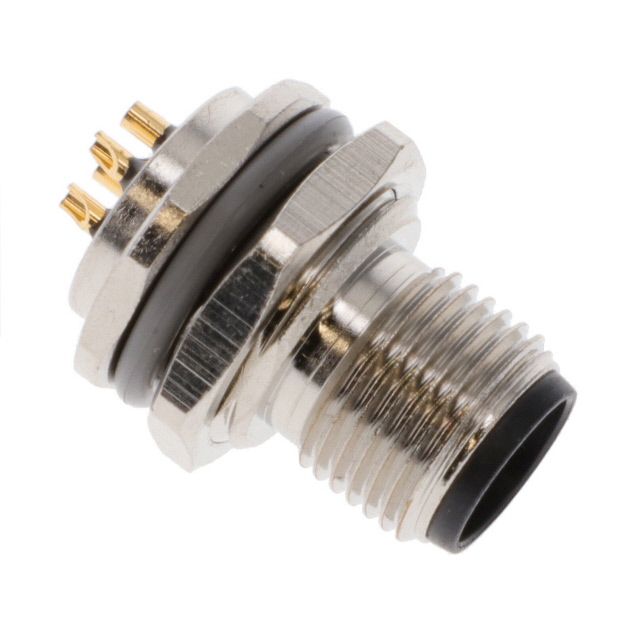

CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
T4130412041-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4130412041-000 | T41304 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 4 | 2 - 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | B | B |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-4 | M12-5, M12-3, M12-2, M12-4 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 250 VDC | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.94 | |
| 10 | $ 6.04 | |||
| 100 | $ 5.38 | |||
| 1000 | $ 4.49 | |||
T41304 Series
CONN RCPT MALE 5P GOLD SLDR CUP
| Part | Current Rating (Amps) | Shell Size - Insert | Contact Finish - Mating | Material Flammability Rating | Orientation | Color | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Applications | Shell Finish | Primary Material | Connector Type | Ingress Protection | Insert Material | Shell Material | Mounting Feature | Contact Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4130412051-000 | 4 A | M12-5 | Gold | UL94 V-0 | B | Silver | Unshielded | 85 °C | -40 °C | 3 µin | 0.076 µm | 60 VDC | Industrial | Nickel | Metal | Male Pins, Receptacle | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Copper Alloy | Bulkhead - Front Side Nut | Copper Alloy | |
TE Connectivity AMP Connectors T4130412031-000 | 4 A | M12-3 | Gold | UL94 V-0 | B | Silver | Unshielded | 85 °C | -40 °C | 3 µin | 0.076 µm | 250 VDC | Industrial | Nickel | Metal | Male Pins, Receptacle | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Copper Alloy | Bulkhead - Front Side Nut | Copper Alloy | |
TE Connectivity AMP Connectors T4130412021-000 | 4 A | M12-2 | Gold | UL94 V-0 | B | Silver | Unshielded | 85 °C | -40 °C | 3 µin | 0.076 µm | 250 VDC | Industrial | Nickel | Metal | Male Pins, Receptacle | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Copper Alloy | Bulkhead - Front Side Nut | Copper Alloy | 2 |
TE Connectivity AMP Connectors T4130412041-000 | 4 A | M12-4 | Gold | UL94 V-0 | B | Silver | Unshielded | 85 °C | -40 °C | 3 µin | 0.076 µm | 250 VDC | Industrial | Nickel | Metal | Male Pins, Receptacle | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Copper Alloy | Bulkhead - Front Side Nut | Copper Alloy | 4 |
Description
General part information
T41304 Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
