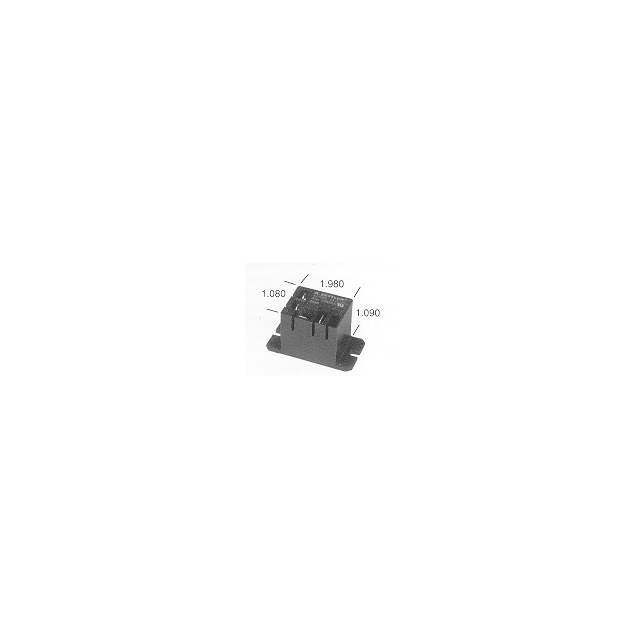

AZ2280-1A-277AEF

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 277V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2280-1A-277AEF

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 277V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZ2280-1A-277AEF	AZ2280-1A Series

Approval Agency	UL, VDE, cUR	UL, VDE, cUR
Coil Current	18.5 mA	8.2 - 240 mA
Coil Insulation	Class F	Class F
Coil Resistance	15 kOhms	13.45 - 2500 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	277 VAC	5 - 277 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	40 A	40 A
Load - Max Switching	11080 VA, 840 W	840 - 11080 VA
Mounting Type	Chassis Mount	Chassis Mount
Must Operate Voltage	235.4 VAC	3.75 - 235.4 VAC
Must Release Voltage	55.4 VAC	0.5 - 55.4 VDC
Operate Time	15 ms	15 ms
Operating Temperature [Max]	60 °C	60 - 85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 ms
Seal Rating	Sealed - Fully	Sealed - Fully
Switching Voltage	277 VAC, 28 VDC	28 - 277 VAC
Termination Style	Quick Connect - 0.187"/0.250"	Quick Connect - 0.187"/0.250"

AZ2280-1A Series

RELAY GEN PURPOSE SPST 40A 22V

Part	Coil Voltage	Mounting Type	Switching Voltage	Coil Type	Termination Style	Relay Type	Coil Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Contact Form	Approval Agency	Contact Rating (Current)	Must Release Voltage	Load - Max Switching	Operate Time	Contact Material	Coil Current	Coil Resistance	Must Operate Voltage	Seal Rating
American Zettler AZ2280-1A-22D	22 VDC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	85 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	2.2 VDC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)
American Zettler AZ2280-1A-24AF	24 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	4.8 VAC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	240 mA	100 Ohms
American Zettler AZ2280-1AET-120AF	120 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	24 VAC	840 W, 11080 VA	15 ms	Silver Tin Oxide (AgSnO)	48 mA	2500 Ohms	102 VAC
American Zettler AZ2280-1AE-6DE		Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	85 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	0.6 VDC	840 W, 11080 VA	15 ms	Silver Tin Oxide (AgSnO)	150 mA	40 Ohms	4.5 VDC	Sealed - Fully
American Zettler AZ2280-1A-120AF	120 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	24 VAC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	48 mA	2500 Ohms	102 VAC
American Zettler AZ2280-1A-9DE	9 VDC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	85 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	0.9 VDC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	93 mA	97 Ohms	6.75 VDC	Sealed - Fully
American Zettler AZ2280-1A-24AEF	24 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	4.8 VAC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	240 mA	100 Ohms		Sealed - Fully
American Zettler AZ2280-1A-120AKF	120 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	24 VAC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	48 mA	2500 Ohms	102 VAC
American Zettler AZ2280-1A-24A	24 VAC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	60 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	4.8 VAC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	240 mA	100 Ohms
American Zettler AZ2280-1A-12D	12 VDC	Chassis Mount	28 VDC, 277 VAC	Non Latching	Quick Connect - 0.187"/0.250"	General Purpose	Class F	85 °C	-55 °C	10 ms	SPST-NO (1 Form A)	cUR, UL, VDE	40 A	1.2 VDC	840 W, 11080 VA	15 ms	Silver Cadmium Oxide (AgCdO)	77 mA	155 Ohms	9 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.31
		10	$ 3.10
		25	$ 2.75
		40	$ 2.62
		80	$ 2.48
		240	$ 2.42

Description

General part information

AZ2280-1A Series

General Purpose Relay SPST-NO (1 Form A) 277VAC Coil Chassis Mount
