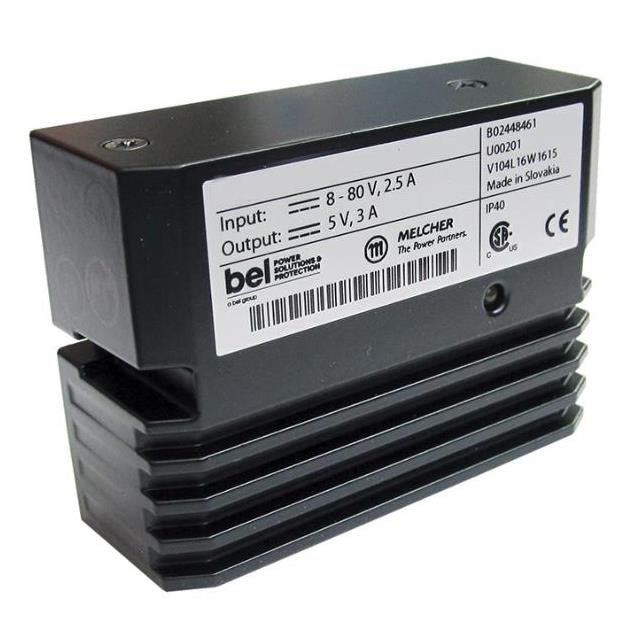

PSA55-7R

Active

Bel Power Solutions

DC DC CONVERTER 5V

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 5V

Technical Specifications

Parameters and characteristics for this part

Specification	PSA55-7R

Applications	Railway, ITE (Commercial)
Current - Output (Max) [Max]	5 A
Efficiency	83 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-25 °C
Package / Case	6-DIP Module
Type	Non-Isolated PoL Module, Conformal Coated
Voltage - Input (Max) [Max] [custom]	35 V
Voltage - Input (Min) [Min]	7 V
Voltage - Output 1	5 V

DC DC CONVERTER 5V

Part	Voltage - Output 1	Voltage - Input (Max) [Max] [custom]	Voltage - Input (Min) [Min]	Efficiency	Mounting Type	Applications	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Output (Max) [Max]	Number of Outputs
Bel Power Solutions PSA55-7R	5 V	35 V	7 V	83 %	Through Hole	ITE (Commercial), Railway	Conformal Coated, Non-Isolated PoL Module	-25 °C	71 °C	6-DIP Module	5 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Conformal Coated DC DC Converter 1 Output 5V 5A 7V - 35V Input

Technical documentation and resources

No documents available
