AI-000404-36-2

Active

MUELLER ELECTRIC

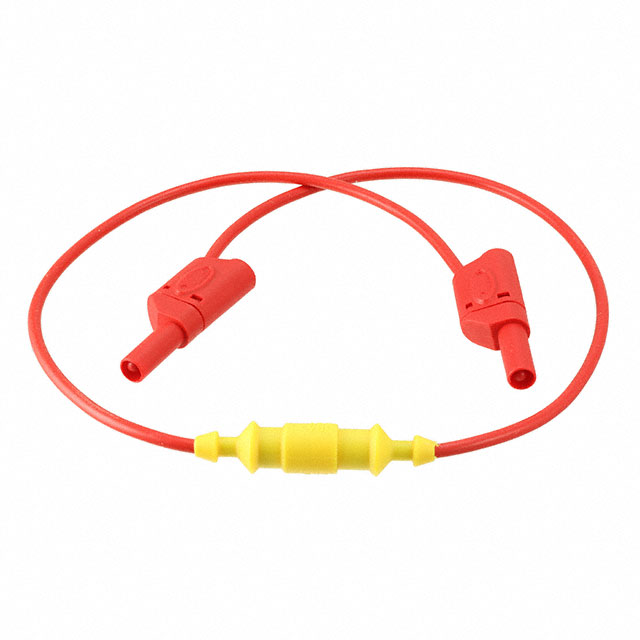

BANANA TEST LEAD, 4MM STACKABLE BANANA PLUG, SHROUDED, 4MM STACKABLE BANANA PLUG, SHROUDED, 36 "

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

BANANA TEST LEAD, 4MM STACKABLE BANANA PLUG, SHROUDED, 4MM STACKABLE BANANA PLUG, SHROUDED, 36 "

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AI-000404-36-2	AI-000404 Series

1st Connector	Sheathed, Stackable, Banana Plug, Single	Sheathed, Stackable, Banana Plug, Single
2nd Connector	Banana Plug, Single, Stackable, Sheathed	Banana Plug, Single, Stackable, Sheathed
Cable Length	36 in	24 - 36 "
Cable Length	914.4 mm	609.6 - 914.4 mm
Configuration	Banana to Banana	Banana to Banana
Contents	Red	1 Lead, Black, Red
Contents [custom]	1	1
Current Rating (Amps)	20 A	20 A
Material - Insulation	Silicone	Silicone
Stacking Method	Front Stacking	Front Stacking
Type	Patch Cord	Patch Cord
Voltage - Rated	1 kV	1 kV
Voltage - Rated	1000 V	1000 V
Wire Gauge	18 AWG	18 AWG

BANANA TEST LEAD, 4MM STACKABLE BANANA PLUG, SHROUDED, 4MM STACKABLE BANANA PLUG, SHROUDED, 24 "

Part	Voltage - Rated	Voltage - Rated	Material - Insulation	Current Rating (Amps)	Contents	Wire Gauge	Configuration	1st Connector	Stacking Method	2nd Connector	Cable Length	Cable Length	Type	Contents [custom]
MUELLER ELECTRIC AI-000404-24-0	1 kV	1000 V	Silicone	20 A	1 Lead, Black	18 AWG	Banana to Banana	Banana Plug, Sheathed, Single, Stackable	Front Stacking	Banana Plug, Single, Stackable, Sheathed	24 "	609.6 mm	Patch Cord
MUELLER ELECTRIC AI-000404-24-2	1 kV	1000 V	Silicone	20 A	Red	18 AWG	Banana to Banana	Banana Plug, Sheathed, Single, Stackable	Front Stacking	Banana Plug, Single, Stackable, Sheathed	24 "	609.6 mm	Patch Cord	1
MUELLER ELECTRIC AI-000404-36-2	1 kV	1000 V	Silicone	20 A	Red	18 AWG	Banana to Banana	Banana Plug, Sheathed, Single, Stackable	Front Stacking	Banana Plug, Single, Stackable, Sheathed	36 in	914.4 mm	Patch Cord	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36.0" (914.40mm) Banana Plug, Single, Stackable, Sheathed To Banana Plug, Single, Stackable, Sheathed Patch Cord 1000V (1kV)
