03-901.2
ActiveEAO

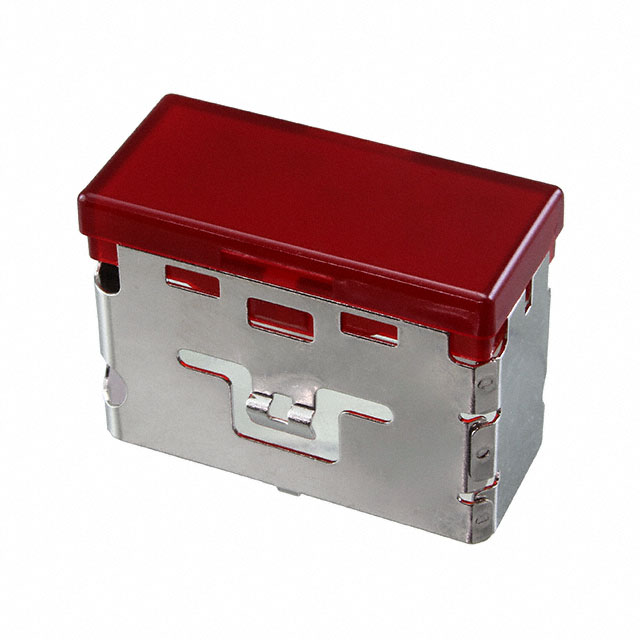

CAP PUSHBUTTON RECTANGLE RED
Deep-Dive with AI
Search across all available documentation for this part.
03-901.2
ActiveEAO
CAP PUSHBUTTON RECTANGLE RED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 03-901.2 | 03-901 Series |
|---|---|---|
| - | - | |
| Color | Red | Smoke, Blue, White, Red, Yellow, Black, Clear |
| For Use With/Related Products | 03 Series | 03 Series |
| Illumination | Illuminated | Illuminated, Non-Illuminated |
| Mounting Type | Snap Fit | Snap Fit |
| Shape | Rectangular | Rectangular |
| Size [x] | 18 mm | 18 mm |
| Size [y] | 38 mm | 38 mm |
| Switch Type | Pushbutton | Pushbutton |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.89 | |
| 10 | $ 6.21 | |||
| 25 | $ 5.89 | |||
| 50 | $ 5.64 | |||
| 100 | $ 5.46 | |||
| 250 | $ 5.18 | |||
| 500 | $ 4.74 | |||
| 1000 | $ 4.52 | |||
03-901 Series
CAP PUSHBUTTON RECTANGLE SMOKE
| Part | For Use With/Related Products | Size [y] | Size [x] | Color | Mounting Type | Switch Type | Illumination | Shape |
|---|---|---|---|---|---|---|---|---|
EAO 03-901.1 | 03 Series | 38 mm | 18 mm | Smoke | Snap Fit | Pushbutton | Illuminated | Rectangular |
EAO 03-901.6 | 03 Series | 38 mm | 18 mm | Blue | Snap Fit | Pushbutton | Illuminated | Rectangular |
EAO 03-901.6 | ||||||||
EAO 03-901.9 | 03 Series | 38 mm | 18 mm | White | Snap Fit | Pushbutton | Illuminated | Rectangular |
EAO 03-901.2 | 03 Series | 38 mm | 18 mm | Red | Snap Fit | Pushbutton | Illuminated | Rectangular |
EAO 03-901.4 | 03 Series | 38 mm | 18 mm | Yellow | Snap Fit | Pushbutton | Illuminated | Rectangular |
EAO 03-901.0 | 03 Series | 38 mm | 18 mm | Black | Snap Fit | Pushbutton | Non-Illuminated | Rectangular |
EAO 03-901.0 | ||||||||
EAO 03-901.3 | 03 Series | 38 mm | 18 mm | Snap Fit | Pushbutton | Illuminated | Rectangular | |
EAO 03-901.9 |
Description
General part information
03-901 Series
Rectangular Pushbutton Switch Cap Red Snap Fit
