966658-2

Active

TE Connectivity AMP Connectors

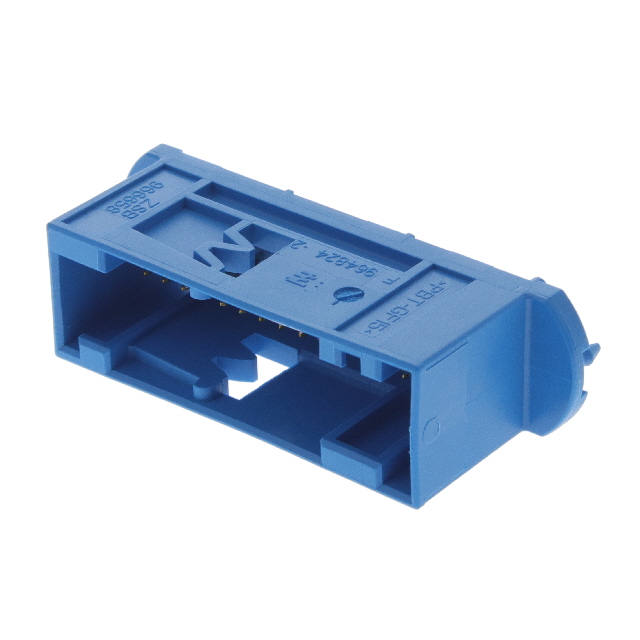

CONN HEADER VERT 32POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

966658-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 32POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	966658-2	966658 Series

Applications	Automotive	Automotive
Connector Type	Header	Header
Contact Finish - Mating	-	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	78.7 µin	31.5 - 78.7 µin
Contact Finish Thickness - Mating	2 µm	0.8 - 2 µm
Contact Length - Mating	6.8 mm	6.8 mm
Contact Length - Mating	0.268 in	0.268 in
Contact Length - Post	2.5 mm	2.5 mm
Contact Length - Post	0.098 in	0.098 in
Contact Material	Brass	Brass, Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Holder	Latch Holder
Insulation Color	Blue	Blue, Gray, Green, Violet
Insulation Height	20.2 mm	20.2 mm
Insulation Height	0.795 in	0.795 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled, Polyphthalamide (PPA), Glass Filled
Mounting Type	Through Hole	Through Hole
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Contact Length	13.21 mm	12.7 - 13.21 mm
Overall Contact Length	0.52 in	0.5 - 0.52 "
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	12 V	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.05
		10	$ 1.70
		80	$ 1.44
		440	$ 1.25
		945	$ 1.17
		4900	$ 1.17

966658 Series

CONN HEADER VERT 32POS 2.54MM

Part	Contact Material	Shrouding	Contact Type	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Insulation Material	Mounting Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Shape	Insulation Height	Insulation Height	Contact Finish - Post	Number of Rows	Style	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Termination	Voltage Rating	Contact Finish - Mating
TE Connectivity AMP Connectors 1-966658-2	Brass	Shrouded - 4 Wall	Male Pin	12.7 mm	0.5 "	78.7 µin	2 µm	Automotive	Polybutylene Terephthalate (PBT), Glass Filled	Through Hole	6.8 mm	0.268 in	All	Square	20.2 mm	0.795 in	Tin	2	Board to Board, Cable	0.1 in	2.54 mm	2.5 mm	0.098 in	Header	Latch Holder	2.54 mm	0.1 in	-40 °C	110 °C	Blue	Solder	12 V
TE Connectivity AMP Connectors 966658-2	Brass	Shrouded - 4 Wall	Male Pin	13.21 mm	0.52 in	78.7 µin	2 µm	Automotive	Polybutylene Terephthalate (PBT), Glass Filled	Through Hole	6.8 mm	0.268 in	All	Square	20.2 mm	0.795 in	Tin	2	Board to Board, Cable	0.1 in	2.54 mm	2.5 mm	0.098 in	Header	Latch Holder	2.54 mm	0.1 in	-40 °C	110 °C	Blue	Solder	12 V
TE Connectivity AMP Connectors 3-966658-2	Brass	Shrouded - 4 Wall	Male Pin	13.21 mm	0.52 in	78.7 µin	2 µm	Automotive	Polybutylene Terephthalate (PBT), Glass Filled	Through Hole	6.8 mm	0.268 in	All	Square	20.2 mm	0.795 in	Tin	2	Board to Board, Cable	0.1 in	2.54 mm	2.5 mm	0.098 in	Header	Latch Holder	2.54 mm	0.1 in	-40 °C	110 °C	Blue	Solder	12 V
TE Connectivity AMP Connectors 2-966658-2	Brass	Shrouded - 4 Wall	Male Pin	13.21 mm	0.52 in	78.7 µin	2 µm	Automotive	Polyphthalamide (PPA), Glass Filled	Through Hole	6.8 mm	0.268 in	All	Square	20.2 mm	0.795 in	Tin	2	Board to Board, Cable	0.1 in	2.54 mm	2.5 mm	0.098 in	Header	Latch Holder	2.54 mm	0.1 in	-40 °C	110 °C	Blue	Solder	12 V
TE Connectivity AMP Connectors 966658-3	Brass	Shrouded - 4 Wall	Male Pin	13.21 mm	0.52 in	78.7 µin	2 µm	Automotive	Polybutylene Terephthalate (PBT), Glass Filled	Through Hole	6.8 mm	0.268 in	All	Square	20.2 mm	0.795 in	Tin	2	Board to Board, Cable	0.1 in	2.54 mm	2.5 mm	0.098 in	Header	Latch Holder	2.54 mm	0.1 in	-40 °C	110 °C	Gray	Solder	12 V
TE Connectivity AMP Connectors 3-966658-1	Brass	Shrouded - 4 Wall	Male Pin	13.21 mm	0.52 in	78.7 µin	2 µm	Automotive	Polybutylene Terephthalate (PBT), Glass Filled	Through Hole	6.8 mm	0.268 in	All	Square	20.2 mm	0.795 in	Tin	2	Board to Board, Cable	0.1 in	2.54 mm	2.5 mm	0.098 in	Header	Latch Holder	2.54 mm	0.1 in	-40 °C	110 °C	Green	Solder	12 V
TE Connectivity AMP Connectors 9-966658-9	Copper Alloy	Shrouded - 4 Wall	Male Pin			31.5 µin	0.8 µm	Automotive	Polybutylene Terephthalate (PBT), Glass Filled	Through Hole	6.8 mm	0.268 in	All	Square	20.2 mm	0.795 in	Tin	2	Board to Board, Cable	0.1 in	2.54 mm	2.5 mm	0.098 in	Header	Latch Holder	2.54 mm	0.1 in	-40 °C	110 °C	Violet	Solder	12 V	Gold

Description

General part information

966658 Series

Connector Header Through Hole 32 position 0.100" (2.54mm)

Documents

Technical documentation and resources
