0219.630TXAP

Active

LITTELFUSE

FUSE 5X20 T EBC 630MA/250V HIGH I2T (P)/ BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSEMKO_2301032 CCC_2020970207000068 +7

0219.630TXAP

Active

LITTELFUSE

FUSE 5X20 T EBC 630MA/250V HIGH I2T (P)/ BULK

Deep-Dive with AI

DocumentsSEMKO_2301032 CCC_2020970207000068 +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0219.630TXAP

Approval Agency	SEMKO, UL, CE, VDE, CSA, CCC
Breaking Capacity @ Rated Voltage	150 A
Current Rating (Amps)	0.63 A
DC Cold Resistance	0.275 Ohms
Melting I²t	4.82
Mounting Type	Requires Holder
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Slow Blow
Size / Dimension [diameter]	5.2 mm
Size / Dimension [diameter]	0.205 in
Size / Dimension [x]	0.787 in
Size / Dimension [x]	20 mm
Voltage Rating - AC	250 V

0219.630 Series

FUS 5x20 CC T EBC 630mA/250V HIGH I2T-P

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case [y]	Package / Case [x]	Approval Agency	DC Cold Resistance	Melting I²t	Current Rating (Amps)	Response Time	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Breaking Capacity @ Rated Voltage	Voltage Rating - AC
LITTELFUSE 0219.630TXAP	-55 °C	125 °C	Requires Holder	20 mm	5 mm	CCC, CE, CSA, SEMKO, UL, VDE	0.275 Ohms	4.82	0.63 A	Slow Blow	0.787 in	5.2 mm	20 mm	0.205 in	150 A	250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.10
Newark	Each	1	$ 1.79
		10	$ 1.46
		25	$ 1.35
		50	$ 1.24
		100	$ 1.10
		500	$ 0.99
		1000	$ 0.86
		2500	$ 0.77

Description

General part information

0219.630 Series

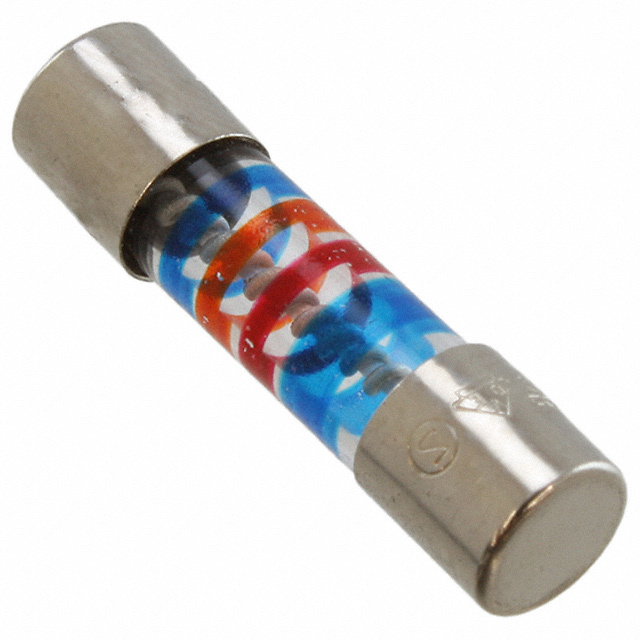

5x20mm time-Lag glass body cartridge fuse designed to IEC specification

Documents

Technical documentation and resources

Datasheet

RUC_DE.HB26.B.01385_21
