796381-2

Active

TE Connectivity AMP Connectors

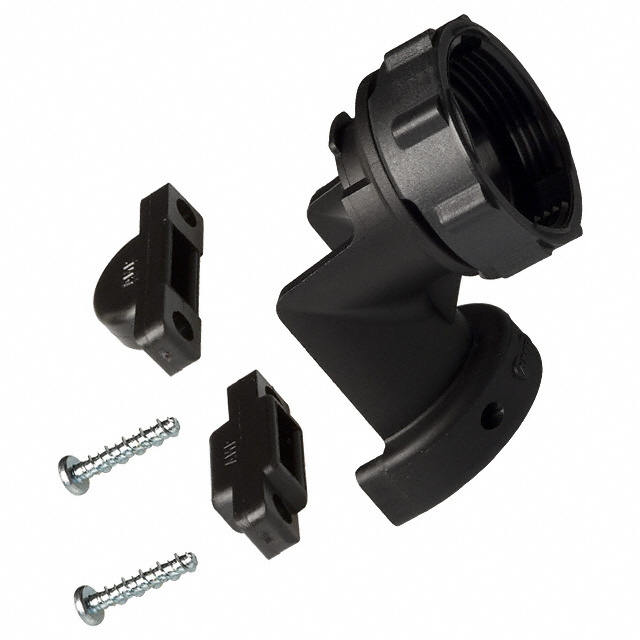

CONN BCKSH W/CLMP SZ17 15/16-20

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BCKSH W/CLMP SZ17 15/16-20

Technical Specifications

Parameters and characteristics for this part

Specification	796381-2

Cable Exit	90 °
Cable Opening [custom]	0.453 in
Cable Opening [custom]	11.51 mm
Color	Black
Features	Clamp Screws
For Use With/Related Products	CPC Connectors
Includes	5 pcs - 3 pc Cable Clamp, 2 Screws
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Shell Size - Insert	17
Thread Size	15/16-20 UNEF
Type	Backshell, Cable Clamp

CONN BCKSH W/CLMP SZ17 15/16-20

Part	Shell Size - Insert	Color	Thread Size	Cable Exit	Features	Type	For Use With/Related Products	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]	Includes	Material
TE Connectivity AMP Connectors 796381-2	17	Black	15/16-20 UNEF	90 °	Clamp Screws	Backshell, Cable Clamp	CPC Connectors	UL94 V-0	0.453 in	11.51 mm	2 Screws, 5 pcs - 3 pc Cable Clamp	Polyamide (PA), Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp 15/16-20 UNEF 17
