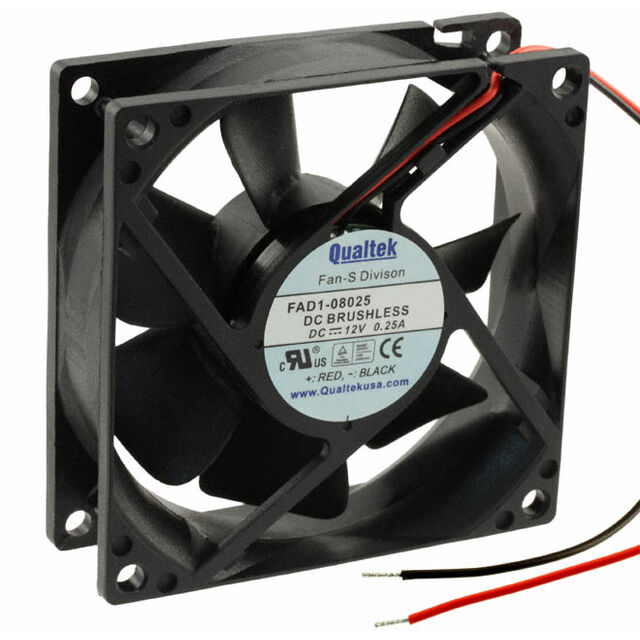

FAD1-08025CSJW11
UnknownQualtek
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FAD1-08025CSJW11
UnknownQualtek
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FAD1-08025CSJW11 |
|---|---|
| Air Flow | 43.3 CFM |
| Air Flow | 1.21 mł/min |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 0.23 A |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.76 W |
| RPM | 3400 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 41.6 Pa |
| Static Pressure | 0.167 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 85.73 g |
| Weight | 0.189 lb |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FAD1-08025CSJW11
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Sleeve 43.3 CFM (1.21mł/min) 2 Wire Leads
